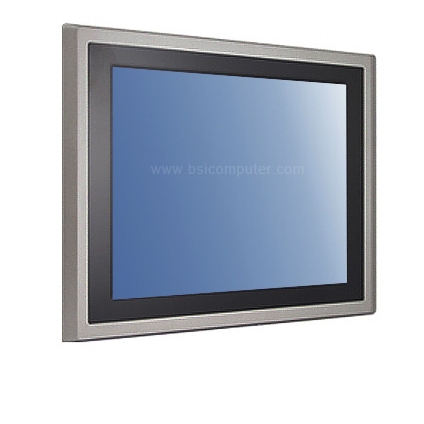

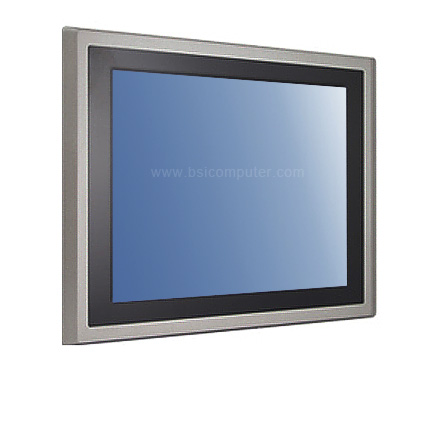

PMS8715 15" Fanless Panel PC

Features:

  • 15" 1024 x 768 TFT LCD Flat Fanless Touch Panel PC
  • IP66 Compliant Front Panel
  • Intel® Celeron N2930 1.83GHz Quad Core Processor
  • Onboard 4GB DDR3L Memory
  • Aluminum Die-Casting Front Bezel and Chassis, IP66 Aluminum Front Bezel
  • Supports Wide Range Voltage DC in (9~36V)


The PMS8715 is a Fanless panel PC with a 15-inch display. The system runs with the Intel Celeron N2930 on an Intel SoC chipset. Memory supports DDR3L 1333 MHz SO-DIMM RAM up to a capacity of 4GB and for storage; there is a SATA MO-297 SSD bay for an appropriate SSD and also an SD card slot supporting a capacity of up to 32 GB. The system is powered using a wide range of voltage options anywhere between 9-36 volts using a 3-pin DC power input terminal.

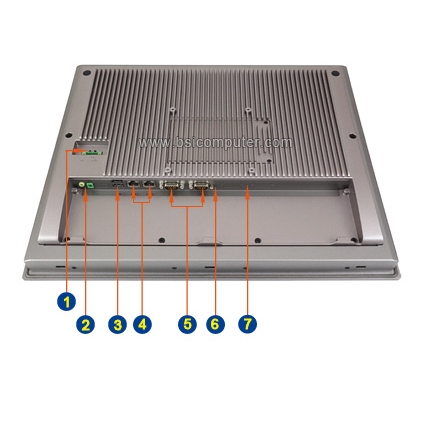

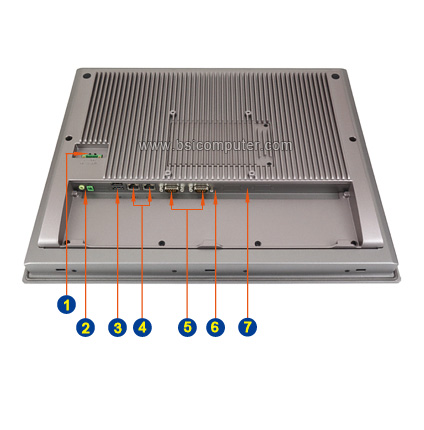

The display supports a resistive touch screen with a resistive touch window of over 80%. Expansion options are also provided giving the user access to one internal full-sized Mini-PCIe slot. If desired, the user may also install a TPM module for added security as an optional add-on. There is also a wide variety of I/O ports available for use including 2 LAN with PoE, 3 USB 3.0, and 2 COM.


In Stock. Ship in 3 Days

Base Configurations

PMS8715 Fanless Panel PC

  • 15" 1024 x 768 TFT LCD 450 nits Resistive Touch Screen
  • Intel® Celeron® N2930 1.83GHz Quad Core Processor
  • Onboard 4GB DDR3L Memory
  • 250GB 2.5" SATA Solid State Drive
  • 1 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
  • 2 x USB3.0 Ports
  • 1 x Full-Size Mini-PCIe Slot, 1 x SD Card Slot
  • 2 x Gigabit LAN
  • 9~36VDC Terminal Block Power Connector
    Power Adapter (Optional)

Configured:

$1,135.00

Customize
