Features:

• 1U Rack Mount Server
• Single socket LGA 4677, 4th Gen Intel® Xeon® Scalable Processors
• Intel® Xeon® CPU Max Series
• 8-Channel RDIMM DDR5 per processor, 16 x DIMMs
• Dual ROM Architecture
• 4 x Hot-Swap 3.5”/2.5” SATA/SAS Drive Bays
• 1 x M.2 slot with PCIe Gen3 x4 interface
• 1 x 1Gb/s LAN port (Intel® I210-AT), 1 x Dedicated management port
• 2 x FHHL PCIe Gen5 x16 slots
• 2 x OCP 3.0 Gen5 x16 slots
• Front I/O Ports: 2 x USB 3.2

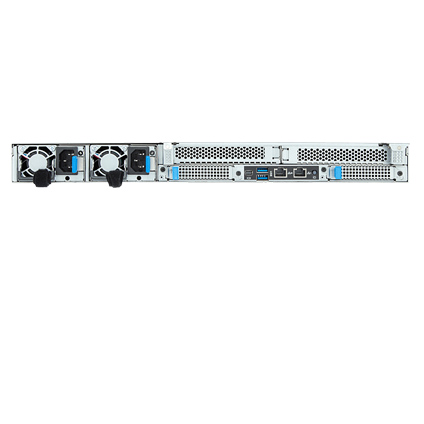

• Rear I/O Ports: 2 x USB 3.2, 1 x Mini-DP, 1 x GbE LAN, 1 x MLAN, 1 x ID Button with LED
• 4 x 40x40x56mm 29,700 RPM cooling fans, 2 x 40x40x28mm 25,000 RPM cooling fans
• 800W Redundant 80 PLUS platinum power supplies
• Dimension: 17.24" x 27.95" x 1.71" (438mm x 710mm x 43.5mm

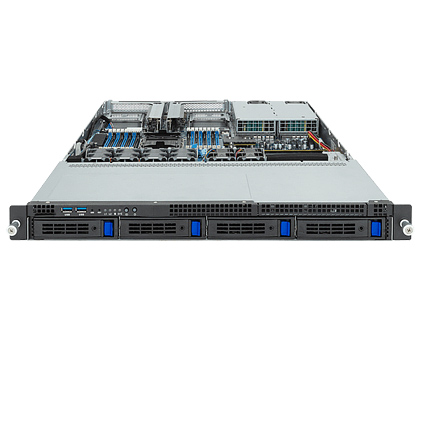

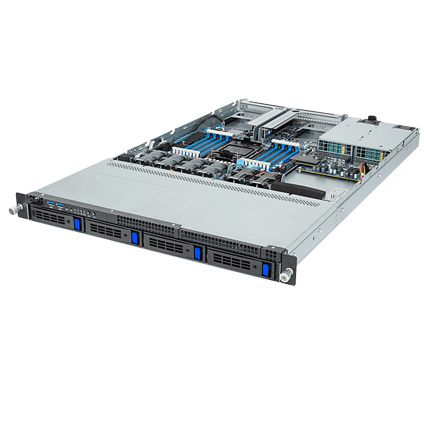

The Gigabyte R163-S30 (rev. AAB2) is a versatile 1U server powered by 4th Gen Intel® Xeon® Scalable Processors, 16x DIMMs 8-Channel RDIMM DDR5 memory. For storage capabilities the R163-S30 (REV. AAB2) has four 3.5”/2.5” SATA/SAS hot-swappable drive bays. For expansion purposes there are up to two FHHL PCIe 5.0 x16 slots, and two OCP 3.0 Gen5 x16 slots. The Gigabyte Server R163-S30 (rev. AAB2) is equipped with six 40mm cooling fans, and 800W redundant 80 Plus platinum power supplies.
