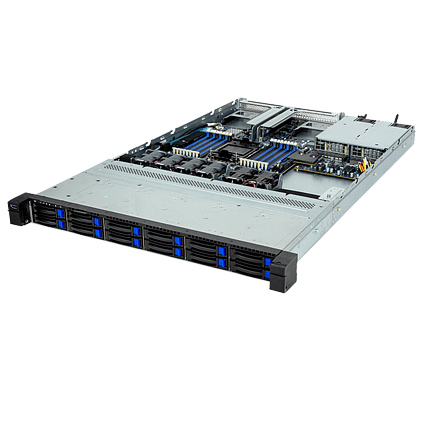

Gigabyte R163-S32 (rev. AAB1) 4th Gen Intel® Xeon® 1U 12-Bay SATA/SAS Rack Mount Server
Features:
- 1U Rack Mount Server
- Single socket LGA 4677, 4th Gen Intel® Xeon® Scalable Processors
- Intel® Xeon® CPU Max Series
- 8-Channel RDIMM DDR5 per processor, 16 x DIMMs
- Dual ROM Architecture
- 12 x Hot-Swap 2.5” SATA/SAS Drive Bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 2 x FHHL PCIe Gen5 x16 slots
- 2 x OCP 3.0 Gen5 x16 slots
- Front I/O Ports: 1 x USB 3.2

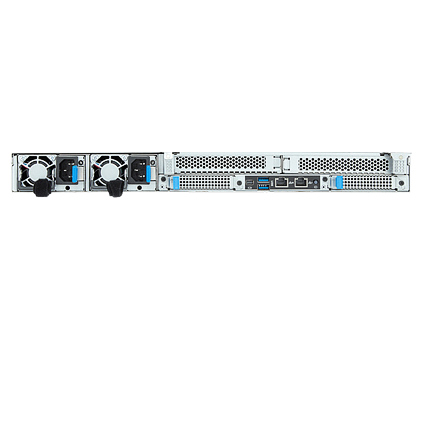

- Rear I/O Ports: 2 x USB 3.2, 1 x Mini-DP, 1 x GbE LAN, 1 x MLAN, 1 x ID Button with LED
- 4 x 40x40x56mm 29,700 RPM cooling fans, 2 x 40x40x28mm 25,000 RPM cooling fans
- 800W Redundant 80 PLUS platinum power supplies
- Dimension: 17.24" x 28" x 1.71" (438mm x 710mm x 43.5mm
The Gigabyte R163-S32 (rev. AAB1) is a versatile 1U server powered by 4th Gen Intel® Xeon® Scalable Processors, 16x DIMMs 8-Channel RDIMM DDR5 memory. For storage capabilities the R163-S32 (REV. AAB1) has 12 x 2.5” SATA/SAS hot-swappable drive bays. For expansion purposes there are up to 2 x FHHL PCIe 5.0 x16 slots, and 2 x OCP 3.0 Gen5 x16 slots. The Gigabyte Server R163-S32 (rev. AAB1) is equipped with six 40mm system fans, and 800W redundant 80 Plus platinum power supplies.
Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.
Base Configurations
Gigabyte Server R163-S32 (rev. AAB1) 1U Rackmount Server
4th Gen Intel® Xeon® Scalable Processors
DDR5 ECC Registered Memory
12 x 2.5" Hot-swap Drive Bays
1 x TPM Header
1 x Mini-DP Port
2 x OCP 3.0 Gen5 x16 slots
Built-in 1 x GbE LAN, 1 x Management LAN
800W Redundant 80 Plus Platinum Power Supply
