Features:

• 2U Rack Mount Server
• 2 x LGA 4189 Socket P+ , 3rd Gen. Intel® Xeon® Scalable Processors
• Intel® C621A Chipset

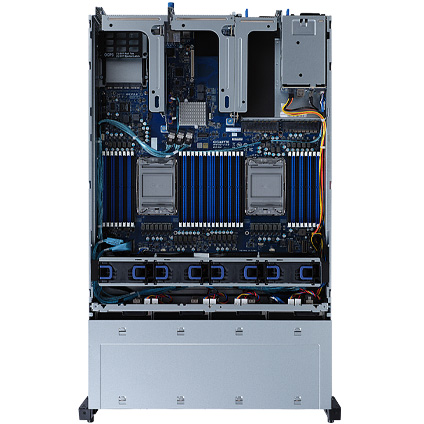

• 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
  Supports Intel® Optane™ Persistent Memory 200 series
• Dual ROM Architecture Supported
• Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
• 8 x Hot-Swap 3.5" / 2.5" SATA/SAS Drive Bays
  4 x Hot-Swap 3.5" / 2.5" SATA/SAS/Gen4 NVMe Drive Bays
• 2 x Rear Hot-Swap 2.5" SATA/SAS Drive Bays
• 8 x PCIe 4.0 Slots
• 1 x OCP 3.0 Gen4 x16 Mezzanine Slot, 1 x OCP 2.0 Gen3 x8 Mezzanine Slot

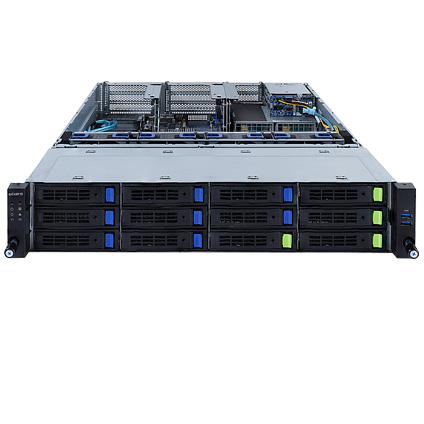

• Front I/O Ports: 2 x USB 3.0, LEDs

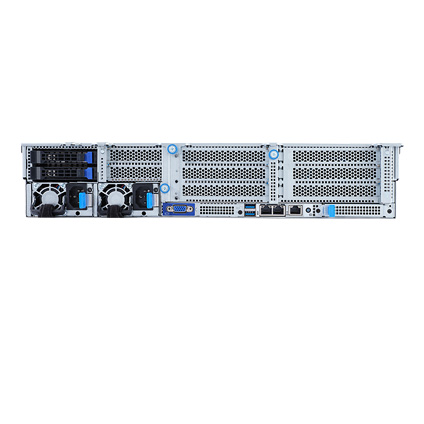

• Rear I/O Ports: 2 x USB 3.0, 1 x VGA Port, 2 x GbE LAN, 1 x MLAN, 1 x ID Button with LED
• 4x 80x80x38mm 16,300RPM Cooling Fans
• Dimension: 17.24" x 28.7" x 3.45" (438mm x660mm x 87.5mm)

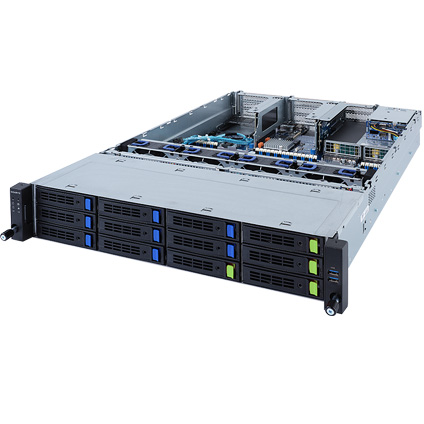

The Gigabyte R282-3C2 is a versatile 2U server solution constructed with Ice Lake Xeon processors to deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations. The processors are powered with 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs and supports the Intel® Optane™ Persistent Memory 200 series. The system supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card and operates on the Intel® C621A Express Chipset. For networking purposes there are 2 x 1Gb/s LAN ports (Intel® I350-AM2) along with 1 x Dedicated management port. For storage capabilities the R282-3C2 comes with 8 x 3.5" or 2.5" SATA/SAS hot-swappable HDD/SSD bays, 4 x 3.5" or 2.5" SATA/SAS/Gen4 NVMe hot-swappable HDD/SSD bays and 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays in rear side. Expansion options are cover a broad range of needs by having 8 x PCIe Gen4 expansion slots, 1 x OCP 3.0 Gen4 x16 mezzanine slot, and 1 x OCP 2.0 Gen3 x8 mezzanine slot. Additional features include dual ROM Architecture support and everything being powered by a 1600W (240V) 80 PLUS Platinum redundant power supply.
