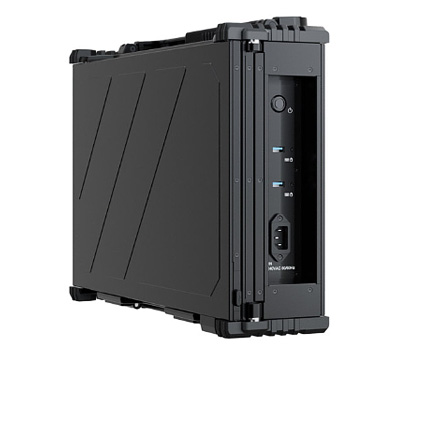

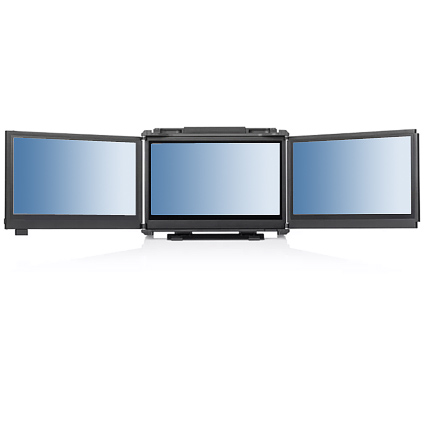

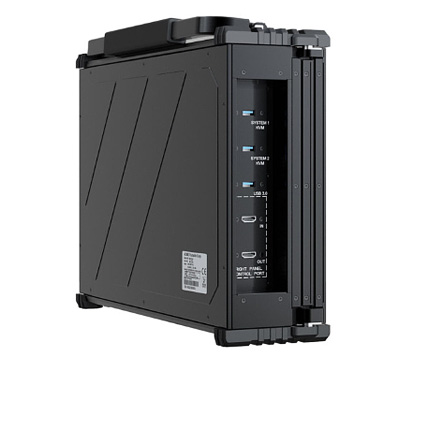

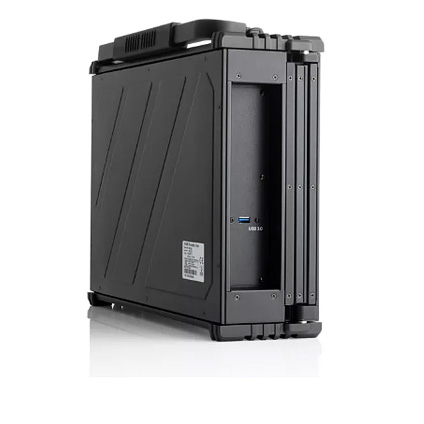

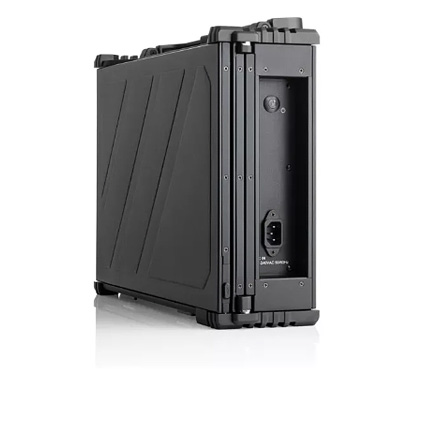

RMK-17TBP Triple LCD Rugged Portable Display System


  • Rugged Portable Triple LCD Display System
  • 3 x 17.3" 1920x1080 TFT LCD Screen (5760 x 1080 Display Area)
  • 300 Nits, 400:1 Contrast Ratio, 170°H / 160°V View Angle
  • Multiple Independent DVI/VGA/DP Inputs
  • Optional Multi-Touch, KVM, and VESA Mount
  • Battery-powered by a Single Battery for Maximum Portability, Without Battery is Optional
  • Customization: Military Connectors, Custom I/O and More

The RMK-17TBP keyboard drawer is a comprehensive solution for enhanced productivity and versatility in various work environments. Featuring three 17.3" Full HD displays with a resolution of 1920 x 1080 each, it offers a combined display area of 5760 x 1080, ensuring immersive and detailed visuals. With a brightness of 300 nits and a contrast ratio of 400:1, it delivers vibrant and crisp images, suitable for various tasks. The wide viewing angle of 170° horizontally and 160° vertically ensures clear visibility from different perspectives. With support for 262K colors and a backlight MTBF of 50,000 hours, it ensures reliable performance over extended periods. Equipped with USB 3.0 ports, it enables seamless connectivity with other devices. Compact dimensions of 15.67" in height, 18.46" in width, and 5.6" in depth, and a weight of approximately 24 lbs (11kg), make it suitable for space-constrained environments. Moreover, its battery-powered functionality enhances mobility and flexibility, making it an excellent choice for on-the-go professionals and diverse multimedia setups.

Base Configurations

RMK-17TBP Rugged Portable Display System

  • 3 x 17.3" 1920 x 1080 FHD LCD Display
  • 170°H / 160°V View Angle
  • 300nits Brightness
  • 400:1 Contrast Ratio
  • 262K Colors
  • VGA, DVI, DisplayPort Inputs
  • Optional Multi-Touch, KVM, and VESA Mount
  • Battery-powered
  • 18.46" x 5.6" x 15.67"(W x H x D)
  • 90W 100/240 VAC Power Supply
