Features:

• 12.1" 1024 x 768 600 nits TFT LCD
• Anti-glare and Anti-UV Projected Capacitive Touch Screen
• Support Gloved and Wet Hand Operation
• 13th Gen Intel Core Mobile i7/i5/i3 Processors (Raptor Lake-P)
• Dual channel 8GB LPDDR4x on board Memory
• 1 x M.2 M key 2280 (PCIe Gen3 x4)
• 1 x M.2 B key 3042/3052/3080 (SATA & PCIe Gen3 x1 & USB 3.0)
• Support WIFI 6E and Bluetooth 5.2 (Optional)

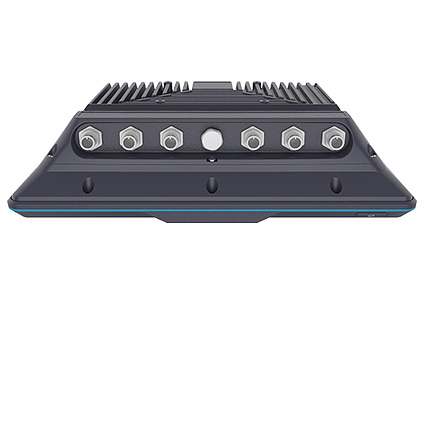

• Customized M12 I/O Selection
• Fanless Design, Full-body IP66 Waterproof, Aluminum Die-casting Housing
• DC-in Supports ACC Mode

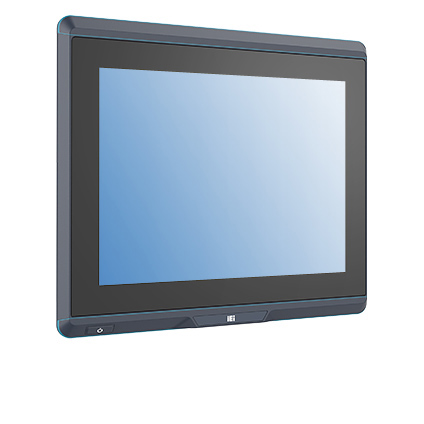

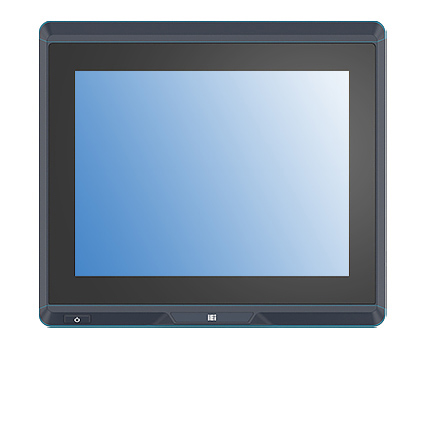

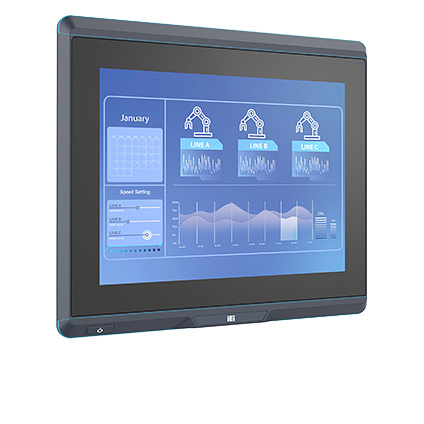

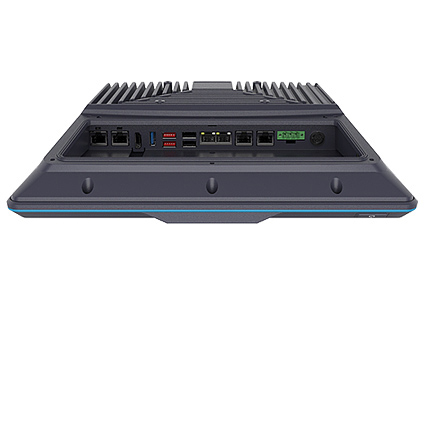

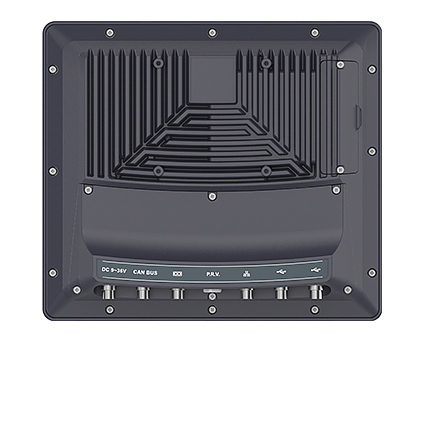

The UPC-F12M1-RPLP is a rugged 12.1-inch fanless panel PC built for demanding industrial environments. Powered by 13th Gen Intel Core i7/i5/i3 mobile processors (Raptor Lake-P) with 8GB LPDDR4x onboard memory and M.2 PCIe Gen3 x4 storage, it delivers high performance in a compact, fanless design. The 600-nit XGA (1024x768) display features PCAP touch (anti-UV/AR coating) with wide viewing angles, housed in a durable aluminum die-cast IP66-rated enclosure that operates in -20°C to 60°C. Connectivity includes 2.5GbE LAN, Wi-Fi 6/Bluetooth 5.2 (optional), CAN bus, RS-232/422/485, USB 2.0, and 9-36V wide-range DC input with ACC mode support. Its industrial-grade M12 connectors ensure reliable connectivity, while VESA mounting offers flexible installation. Certified for CE/FCC/UKCA, this robust panel PC is ideal for factory automation, transportation, and harsh outdoor applications requiring reliable, high-performance computing.
