UST500-517-FL Embedded System for Railway and Vehicle PC

Features:

  • CE, FCC Certified; EN 50155, ISO 7637-2 Compliant
  • 7th/6th Gen Intel® Core™ & Pentium® Processors (up to 65W)
  • Intel® Q170 Chipset
  • 2 x DDR4-1866/2133/2400 SO-DIMM, up to 32GB
  • 2 x 2.5" 15mm Internal SATA Drive with 2 SATA, Intel® RAID 0/1 Supported
    4x 2.5" Swappable SATA Drive with 4 SATA, Intel® RAID 0/1/5/10 Supported (Optional)
  • Flexible LAN Selection, up to 16x RJ-45 GbE PoE LAN Ports
  • 24 VDC Power Input
  • Intelligent Solution of Vehicle Power Management (ACC ignition)
  • Fanless and Wide Operating Temperatures from -40°F to +158°F

The UST500-517-FL is a Fan-less Embedded Vehicle PC constructed of Aluminum extrusion and heavy-duty steel and rated IP40. It supports 7th generation Intel Kaby Lake processors and 6th generation Intel Skylake processors. Two DDR4-1866/2133/2400 SO-DIMM slots are available and support up to 32GB. As for expansion, there are two full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe with external SIM socket), one Half-size Rev.1.2 PCI Express Mini Card slot (mSATA/USB/PCIe), one Half-size Rev.1.2 PCI Express Mini Card slot (USB) and one Half-sized mSATA (occupied 1 x PCI Express Mini Card slot). Storage consists of two 2.5" 15 mm internal SATA drive with two SATA (Intel RAID 0/1 supported), two 2.5" 15 mm swappable SATA drive with two SATA (Intel RAID 0/1 supported) and four 2.5" 15 mm swappable SATA drive with four SATA (Intel RAID 0/1/5/10 supported).

The I/Os for the UST500-517-FL consist of two DB9 serial console or RS-232/422/485, four USB 3.0 ports and terminal block isolated 6-in/2-out DIO (isolation voltage: 5 kV). The UST500-517-FL has many LAN options to choose from. You can choose between eight RJ-45 GbE LAN with 2 SATA (Intel i211-AT) or eight M12 A-coded GbE LAN with 4 SATA (Intel i211-AT) or eight RJ-45, 8 x M12 A-coded GbE LAN with 4 SATA (Intel® i211-AT) or the last option, sixteen RJ-45 GbE LAN with 4 SATA or 2 SATA (Intel i211-AT). For video output there is VGA, DVI-D and an HDMI port. The operating temp is between -40°F to +158°F. The terminal block accepts 24 VDC with ACC ignition and the unit is capable of being wallmount.

Barebone & Base Configurations

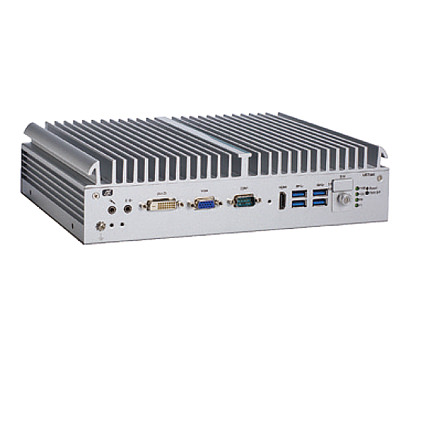

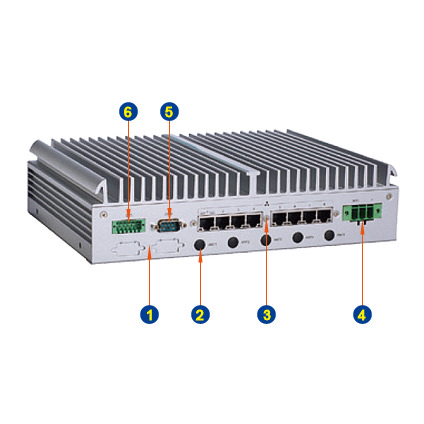

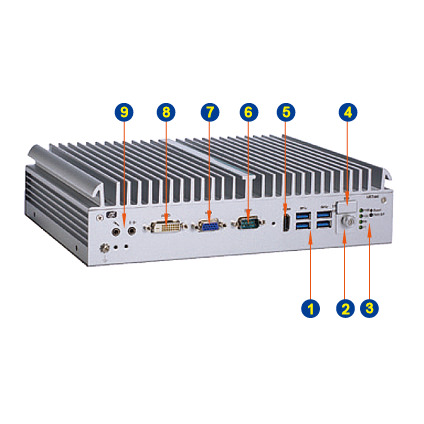

UST500-517-FL Fanless Embedded Vehicle PC w/ 2x SATA Drive Bays


  • Intel® Pentium® Processor G4400T (3M Cache, 2.90 GHz)
    Up to Intel® Core™ i7 Processor (Optional)
  • 4GB DDR4 SO-DIMM Memory
  • 250GB 2.5" SATA Solid State Drive
  • 2 x 2.5" SATA Drive Bays, Swappable Tray Optional
  • 2 x RS-232/422/485
  • 4 x USB 3.0
  • 8 x GbE LAN, Supports Optional 16 x GbE LAN
  • 2 x Full-size PCIe Mini Card Slots, 2 x Half-size PCIe Mini Card Slots, 2 x SIM Slots
  • Terminal Block Isolated 6-in/2-out DIO (Isolation Voltage: 5 kV)
  • TPM 2.0 (Optional)
  • Built-in VGA, DVI-D, HDMI and Audio
  • 24 VDC Power Input
    120W 24V AC to DC Adapter (Optional)

Barebone Only:

$1,245.00

Configured:

$1,445.00

Customize

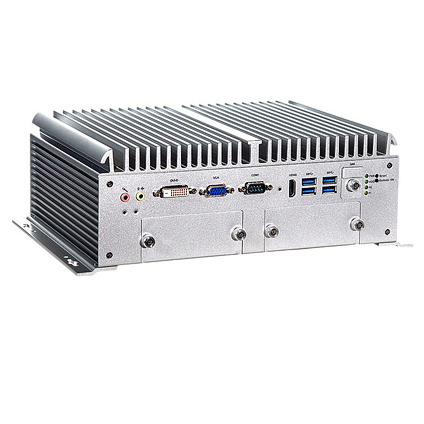

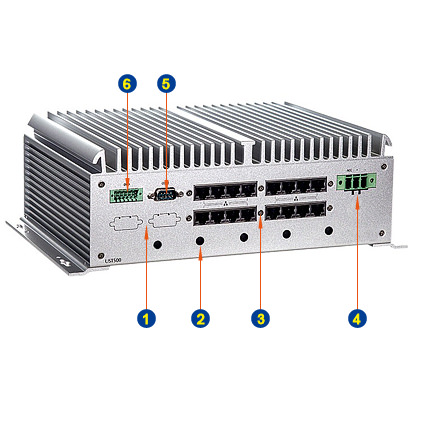

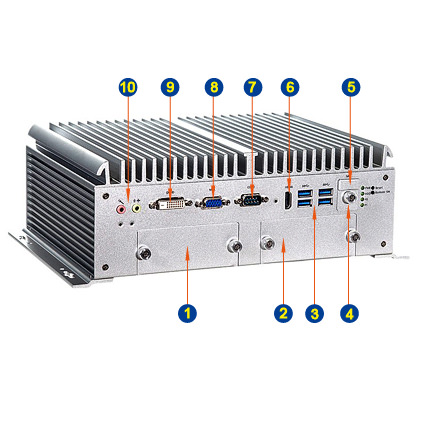

UST500-517-FL Fanless Embedded Vehicle PC/ 4x SATA Drive Bays


  • Intel® Pentium® Processor G4400T (3M Cache, 2.90 GHz)
    Up to Intel® Core™ i7 Processor (Optional)
  • 4GB DDR4 SO-DIMM Memory
  • 250GB 2.5" SATA Solid State Drive
  • 4 x Swappable 2.5" SATA Drive Bays
  • 2 x RS-232/422/485
  • 4 x USB 3.0
  • 8 x M12 GbE LAN, 16 x RJ-45 GbE LAN or 8 x M12 + 8 x RJ-45 GbE LAN (Optional)
  • 2 x Full-size PCIe Mini Card Slots, 2 x Half-size PCIe Mini Card Slots, 2 x SIM Slots
  • Terminal Block Isolated 6-in/2-out DIO (Isolation Voltage: 5 kV)
  • TPM 2.0 (Optional)
  • Built-in VGA, DVI-D, HDMI and Audio
  • 24 VDC Power Input
    120W 24V AC to DC Adapter (Optional)

Barebone Only:

$1,605.00

Configured:

$1,805.00

Customize
