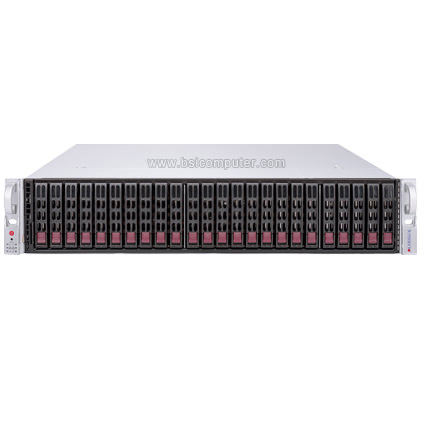

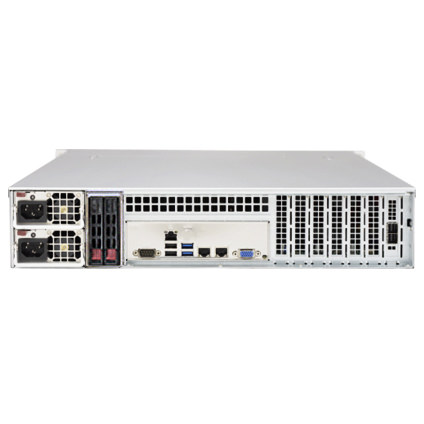

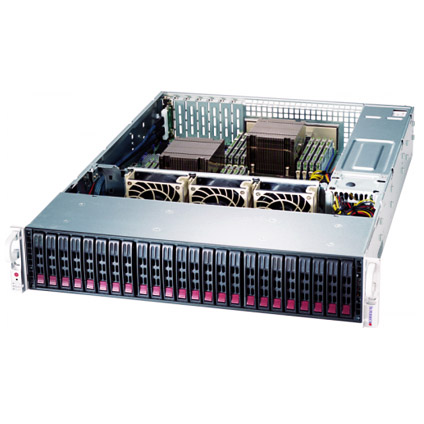

Supermicro SuperStorage Server 2029P-ACR24L w/ 24x 2.5" SAS3/SATA3 Bays 2x 10GbE

Features:


Corporate Database
Database Processing & Storage
Enterprise Server
HPC, Data Center, iSCSI SAN
  • 2U Rackmount Server
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Intel® C624 Chipset
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM Slots
  • 24x Hot-swap 2.5" SAS3/SATA3 Direct Attached Drive Bays
    3x Broadcom 3008 SAS3 AOC (IT mode)
  • 3x PCI-E 3.0 x16, 4x PCI-E 3.0 x8 Slots, 2x M.2 Slots
  • 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
    Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 3x 80mm Heavy Duty PWM Fans
  • 1000W Redundant Power Supply, Titanium Level (96%)
  • 24.8" Depth Rack Mount Chassis

The Supermicro Server 2029P-ACR24L is a 24.8" depth 2U Rackmount server that features dual Intel® Xeon® Scalable Processor with Intel® C624 Chipset, supports up to 2.0TB DDR4 ECC 3DS LRDIMM Memory, built-in dual port 10GBase-T LAN & IPMI LAN. The Supermicro SuperStorage Server 2029P-ACR24L comes with 24x 2.5" hot-swap SAS3/SATA3 drive bays, three 80mm hot-swap PWM fans, and is equipped with 1000W redundant Titanium level power supply.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X11DPH-T Motherboard


  • Supermicro X11DPH-T Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3104 Processor (8.25M Cache, 1.70 GHz)
  • Intel® C624 Chipset
  • 32GB(8x 4GB) DDR4 ECC Registered Memory
  • 24x 2.5" Hot-swap SAS3/SATA3 Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN Ports, 1x IPMI LAN
  • 1000W Redundant Power Supply, Titanium Level Certified

Barebone Only:

$2,345.00

Configured:

$3,719.00

Customize
