Supermicro Mainstream SuperServer 221P-C9R w/ 16x 2.5" NVMe/SAS/SATA Drive Bays

Features:


Virtualization
Enterprise Server
Application and data serving
Compute Intensive Applications
  • 2U Rackmount Server

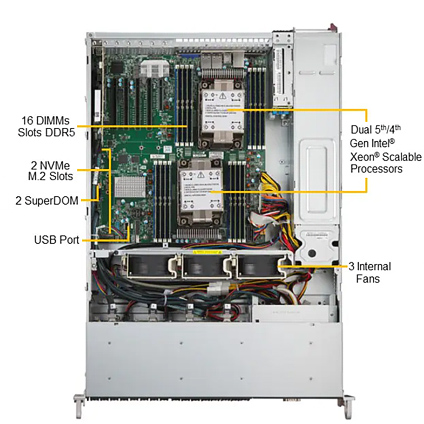

  • Dual Socket E (LGA-4677) 4th/5th Gen Intel® Xeon® Scalable processors. Up to 300W TDP
  • Intel® C741 Chipset
  • 16x DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM

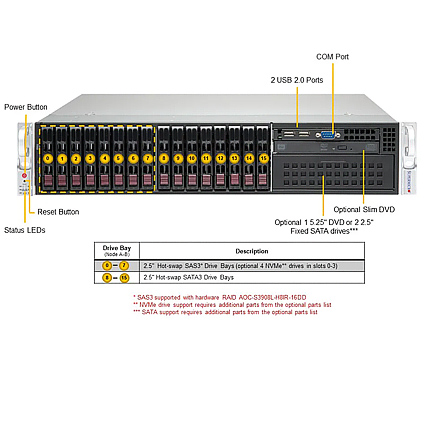

  • 16x Hot-swap 2.5" Drive Bays with 8 SAS RAID (0, 1, 5, 6, 10, 50, 60) and 8 SATA Drive Support
    NVMe support may require additional storage controller and/or cables)
  • 1x Slim DVD Bay (Optional)
  • 2x M.2 Slots
  • 4x PCIe 5.0 x16 Low Profile, 1x PCIe 5.0 x8 Low Profile
  • 3x 80mm Heavy Duty Fans with Optimal Fan Speed Control

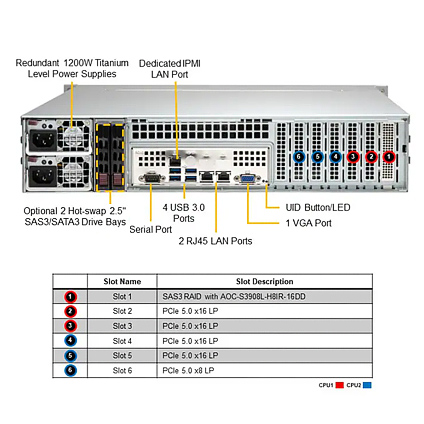

  • 1200W Redundant Titanium Power Supply
  • 24.8" Depth Rack Mount Chassis

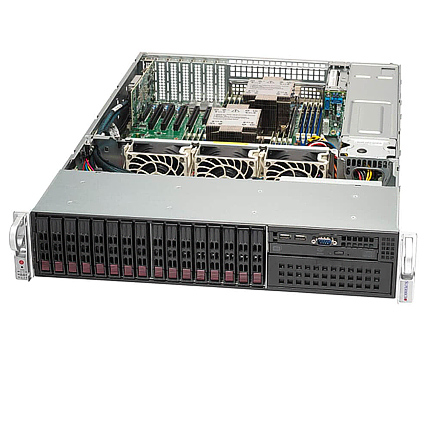

The Supermicro Mainstream SuperServer 221P-C9R 2U Rackmount server features dual 4th/5th Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR5 ECC RDIMM Memory. 4x PCIe 5.0 x16, 1x PCIe 5.0 x8, 2x M.2 slots and dual GbE LAN ports onboard. The Supermicro Server 221P-C9R comes with 16x 2.5" hot-swap drive bays, three 80mm heavy duty fans, and is equipped 1200W redundant titanium level power supply.
