RMS121 1U Rackmount Computer
Features:
- 1U Rack Mount Industrial Computer
- ATX / Micro ATX Form Factor
- 2 x 3.5" Internal Drive Bays
- 2 x 2.5" Internal Drive Bays
- Front Access 2 x USB 3.0
- 1 x Expansion Slot
- 3 x 40mm Cooling Fans
- 15" Short-Depth Rack Mount PC
- Due to the height of the chassis, the Motherboard I/O panel is not included
The RMS121 is an EIA RS-310D standard, heavy-duty server built with preplaced SPGC cold -rolled steel. The RMS121 supports ATX/Micro ATX form factor motherboard, 2x 3.5" and 2x 2.5" HDD drive bays and 1x expansion slot for add on card.
The RMS121 is designed for small business; Web/Hosting; Email/Firewall/Print Server; Gateway and Compact Network Appliance applications.
Need a Custom Solution Not Offered Online? Click the Button Below.
| Search Filter | Clear All |
| Processor | Chipset | Memory | Expansion Slots | Brand | Features |
|
|
|
|
|
|
|
Base Configurations
Model: ATX Rackmount Computer - RMS121
1U Rackmount Computer With Supermicro X13SAZ-F Motherboard
- Supermicro X13SAZ-F Motherboard
- 14th Gen Intel Processor
- Intel R680E Chipset
- DDR5 ECC Memory
- M.2 NVME Solid State Drive
- TPM 2.0 Onboard
- Built-in 2 x 2.5GbE LAN
Base Price: |
$1,705.00 |
1U Rackmount Computer With Gigabyte MS03-CE0 Motherboard
- Gigabyte MS03-CE0 Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN
Base Price: |
$2,785.00 |
1U Rackmount Computer with ASUS Pro B760M-CT-CSM Motherboard
- ASUS Pro B760M-CT-CSM Motherboard
- 12th/13th/14th Gen Intel Processor
- Intel B760 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- TPM 2.0 IC Onboard
- Built-in GbE LAN
Base Price: |
$955.00 |
1U Rackmount Computer with Supermicro X14SBM-TF Motherboard
- Supermicro X14SBM-TF Motherboard
- Intel Xeon 6700E Series Processor
- DDR5 ECC Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slot
- Onboard TPM2.0
- 1 x TPM Header
- Built-in Dual 10GBase-T LAN, 1x IPMI LAN
Base Price: |
$5,119.00 |
1U Rackmount Computer with Supermicro X13SCL-F Motherboard
- Supermicro X13SCL-F Motherboard
- Intel Pentium Processor
- Intel Xeon E-2400 Processor
- Intel C262 Chipset
- DDR5 ECC Memory
- M.2 NVME Solid State Drive
- 1 x M.2 Slot
- 1 x TPM Header
- Built-in Dual Gigabit LAN, 1x IPMI LAN
Base Price: |
$1,449.00 |
1U Rackmount Computer With Supermicro X12STH-F Motherboard
- Supermicro X12STH-F Motherboard
- Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor
- Intel C256 Chipset
- DDR4 ECC Memory
- M.2 NVME Solid State Drive
- 1 x TPM Header
- Built-in 2 x GbE LAN
Base Price: |
$1,285.00 |
1U Rackmount Computer with ASUS PRO Q670M-C-CSM Motherboard
- ASUS PRO Q670M-C-CSM Motherboard
- 12th/13th Gen Intel Processor
- Intel Q670 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slots, 1x M.2 Key E
- TPM 2.0 IC Onboard
- Built-in 1 x GbE LAN
Base Price: |
$939.00 |
1U Rackmount Computer With Supermicro X13SEM-F Motherboard
- Supermicro X13SEM-F Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 4 x PCIe 5.0 x8 MCIO Connectors
- Built-in Dual Gigabit LAN & IPMI LAN
Base Price: |
$2,619.00 |
1U Rack Mount Computer With Supermicro X12SAE-5 Motherboard
- Supermicro X12SAE-5 Motherboard
- Intel Core i5-11400 Processor (12M Cache, 2.60 GHz)
Up to Intel Core i9 Processor (Optional)
Intel Xeon W-1300 Series Processor (Optional) - Intel W580 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN, 1 x IPMI LAN
Base Price: |
$1,355.00 |
1U Rackmount Computer With Supermicro X12SPL-F Motherboard
- Supermicro X12SPL-F Motherboard
- Twelve-core Intel Xeon Silver 4310 Processor (18MB Cache, 2.10 GHz)
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- Built-in Dual Gigabit LAN & IPMI LAN
Base Price: |
$2,229.00 |
1U Rackmount Computer With Supermicro X12DPL-i6 Motherboard
- Supermicro X12DPL-i6 Motherboard
Supermicro X12DPL-NT6 Motherboard (Optional) - 2x Twelve-core Intel Xeon Silver 4310 Processor (18MB Cache, 2.10 GHz)
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- Built-in Dual Gigabit LAN & IPMI LAN
Optional Dual 10GBase-T LAN & IPMI LAN (X12DPL-NT6)
Base Price: |
$3,329.00 |
1U Rackmount Computer With X11SCA-F Motherboard
- Supermicro X11SCA-F Motherboard
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor
- Up to Intel Xeon E Processor
- Intel C246 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 4 x USB 3.1 Ports
- Built-in Dual Gigabit LAN
Base Price: |
$1,209.00 |

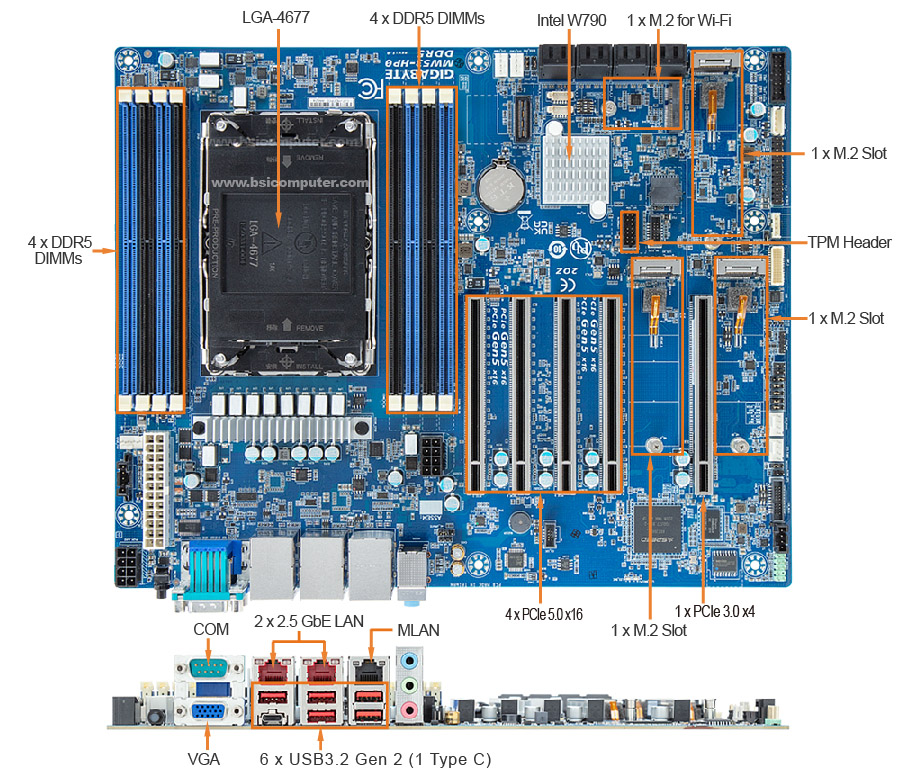

1U Rackmount Computer with GIGABYTE MW53-HP0 ATX Motherboard
- GIGABYTE MW53-HP0 Motherboard
- Intel Xeon W-2400 Processor, Intel Xeon W-3400 Processor
- Intel W790 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots, 1 x M.2 key E for Wi-Fi
- 1 x TPM Header
- Built-in 2 x 2.5GbE LAN, 1x MLAN
Base Price: |
$2,349.00 |
1U Rackmount Computer With Supermicro X11SPM-F Motherboard
- Supermicro X11SPM-F Micro ATX Motherboard
- Six-core Intel Xeon Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
- Intel C621 Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x M.2 Slot
- Built-in Dual Gigabit LAN
Base Price: |
$1,555.00 |
Model: Industrial Rackmount Computer - RMS121
1U Rackmount Computer with IMB-H610E-MATX Motherboard
- IMB-H610E-MATX Motherboard
- 3 to 5 Years Life Time
- 12th/13th Gen Intel Processor
- Intel H610 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- TPM 2.0 Onboard
- 4 x RS-232, 2 x RS-232/422/485
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN
Base Price: |
$1,009.00 |
1U Rackmount Computer with IMB-Q670JT2-MATX Motherboard
- IMB-Q670JT2-MATX Motherboard
- Long-Life Lifecycle Through Q1' 2037
- 12th/13th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- TPM 2.0 Onboard
- 5 x RS-232, 1 x RS-232/422/485
- Built-in 2 x GbE LAN, 1 x 2.5GbE LAN
Base Price: |
$1,199.00 |
1U Rackmount Computer with IMB-C621AA Motherboard
- IMB-C621AA Industrial Motherboard
- 3 to 5 Years Life Time
- 3rd Gen Intel Xeon Scalable Processors
- Intel C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- 3 x PCIe x16, 3 x PCIe x8
- TPM 2.0 Module (Optional)
- Built-in Dual Gigabit LAN
Base Price: |
$2,469.00 |
1U Rackmount Computer with IMB-R680EA Motherboard
- IMB-R680EA Industrial Motherboard
- 3 to 5 Years Life Time
- 12th/13th Gen Intel Processor
- Intel R680E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0 (Optional)
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN
Base Price: |
$1,305.00 |
1U Rackmount Computer with IMB-W480EA Motherboard
- IMB-W480EA Industrial Motherboard
- 3 to 5 Years Life Time
- Intel Celeron G5905 Processor (4M Cache, 3.50 GHz)
- Up to Intel Core i9 Processor and Intel Xeon W-1200 Series Processor
- Intel W480E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 2 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key
- TPM 2.0 Module (Optional)
- Built-in Dual Gigabit LAN
Base Price: |
$1,189.00 |
1U Rackmount Computer with IMB-H410JT2 Motherboard
- IMB-H410JT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2030
- 10th Gen Intel Processor
- Intel H410 Chipset
- DDR4 Memory
- M.2 SATA Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key 2242/2280
- TPM 2.0 Onboard
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN
Base Price: |
$1,015.00 |
1U Rackmount Computer with IMB-Q470EJT2-MATX Motherboard
- IMB-Q470EJT2-MATX Motherboard
- 3 to 5 Years Life Time
- 10th/11th Gen Intel Processor
- Intel Q470E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi
- TPM 2.0 Module
- 4 x RS232, 2 x RS232/422/485
- Built-in 2 x 2.5GbE LAN, 2 x GbE LAN
Base Price: |
$1,155.00 |

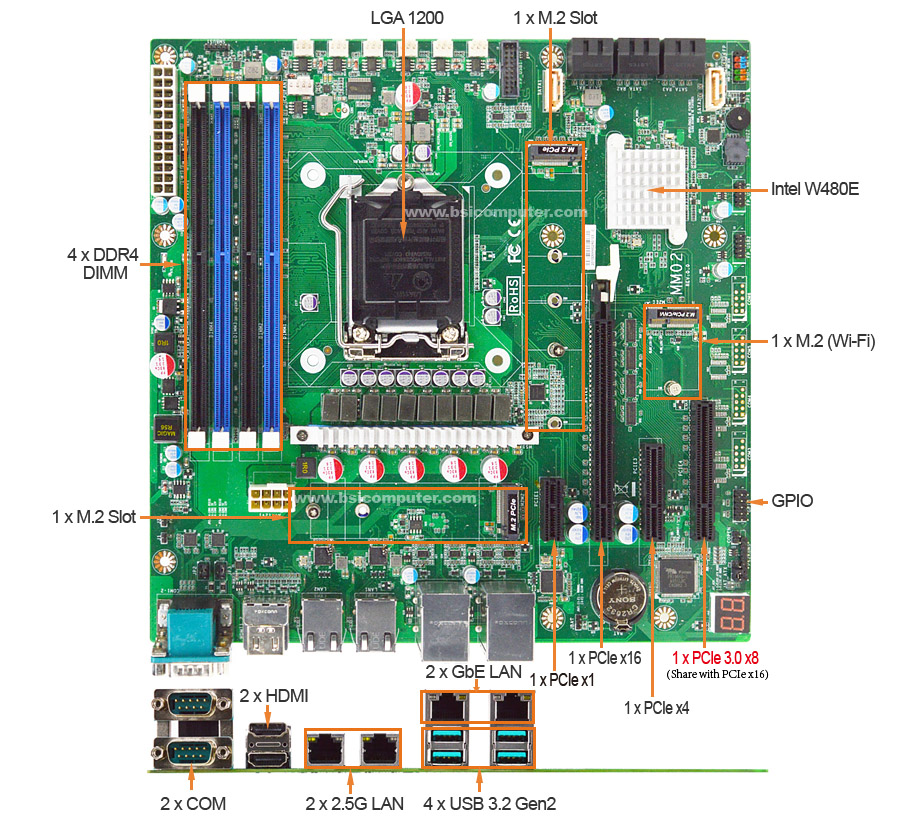

1U Rack Mount Computer with IMB-W480EJ-MATX Motherboard
- IMB-W480EJ-MATX Motherboard
- Long-Life Lifecycle Through Q2' 2035
- Intel Celeron G5905 Processor (4M Cache, 3.50 GHz)
- Up to Intel Core i9 Processor
- Intel W480E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi
- TPM 2.0 Module (Optional)
- 2 x RS232
- Built-in 2 x 2.5GbE LAN, 2 x GbE LAN
Base Price: |
$1,195.00 |
1U Rackmount Computer with IMB-Q370JT2 Motherboard
- IMB-Q370JT2 Motherboard
- Long-Life Lifecycle Through Q2' 2033
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor
- Intel Q370 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 1 x M.2 M Key, 1 x M.2 E Key
- 6 x USB 3.1 Ports
- TPM Onboard
- Built-in Dual Gigabit LAN
Base Price: |
$1,129.00 |
1U Rack Mount Computer with IMB-H310J Motherboard
- IMB-H310J Motherboard
- Long-Life Lifecycle Through Q2' 2033
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor
- Intel H310 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 1 x M.2 Slot, 1 x Mini PCIe Slot, 1 x SIM Slot
- 8 x RS232, 2 x RS232/422/485
- 4 x USB3.1 Ports
- Built-in Dual Gigabit LAN
- Intel fTPM 2.0 (PTT) Trusted Computing Firmware, Option: Onboard TPM v1.2 or v2.0
Base Price: |
$965.00 |
1U Rackmount Computer with IMB-C246JT2 Motherboard
- IMB-C246JT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2033
- Intel Celeron Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel Core i9 Processor and Intel Xeon E Series Processor
- Intel C246 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 8 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key, 1 x M.2 E Key
- 6 x USB 3.1 Ports
- Built-in Dual Gigabit LAN
- TPM Onboard
Base Price: |
$1,169.00 |
1U Rackmount Computer with IMB-Q170J Motherboard
- IMB-Q170J Motherboard
- 3 to 5 Years Life Time
- Intel Celeron Processor G3900 (2M Cache, 2.80 GHz)
- Up to Intel Core i7 Processor
- Intel Q170 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- Built-in Dual Gigabit LAN
Base Price: |
$1,065.00 |
