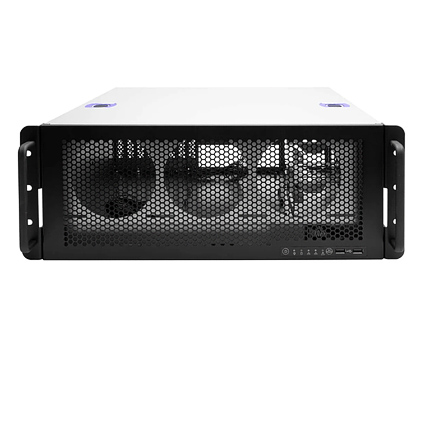

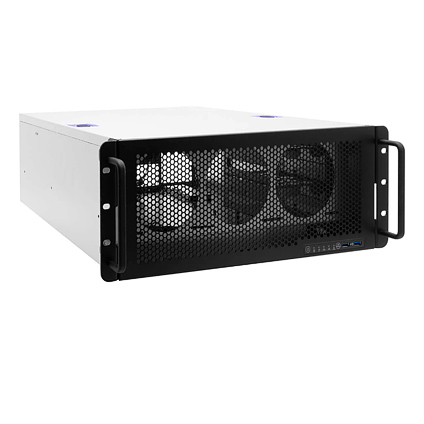

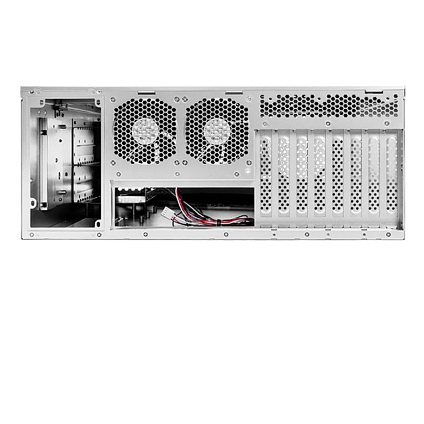

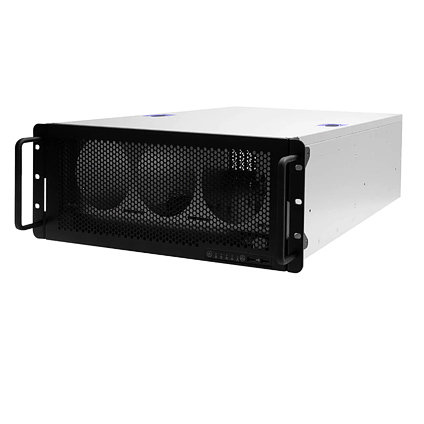

RMS400LC 4U Rackmount Computer
Features:
- 4U Industrial Rack Mount Computer
- Supports Mini-ITX, Micro ATX, Standard ATX, CEB (12" x 10.5")
- 4 x 3.5" Internal Drive Bays
- Supports up to 8x Expansion Slots
- Water Cooling Radiator: Support Front AIO Installation up 240/360mm Max Thickness 60mm with Fan
- Preinstall 2 x 80mm PWM Rear Fans
- Includes a Card Support Bar to Securely Hold Your GPU Cards in Place
- 1.2 mm SGCC 4U Rackmount Chassis
- 20.67" Depth Rack Mount PC

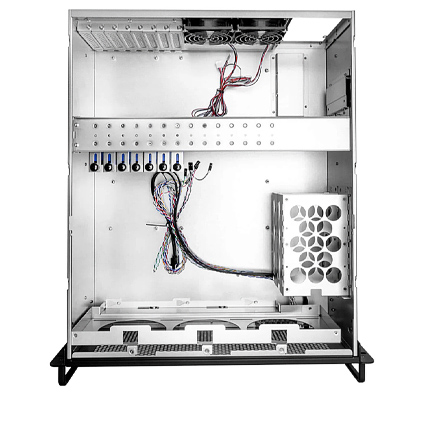

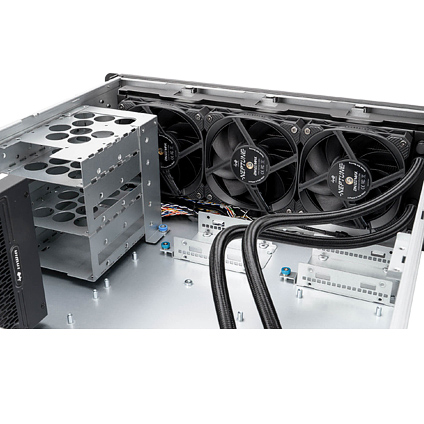

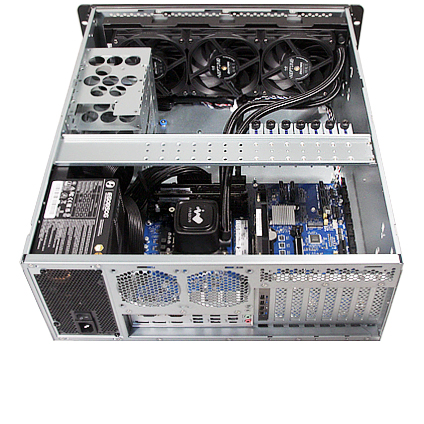

The RMS400LC rack mount chassis is a versatile and robust solution designed to accommodate a range of motherboard form factors, including Mini-ITX, MicroATX, ATX, and Extended-ATX (EATX), with dimensions up to 12 inches by 10.5 inches. It features a detachable front bracket for easy installation of up to 360 mm All-In-One (AIO) cooling radiators, ensuring optimal thermal management. The chassis is equipped with two pre-installed 8025 server-grade PWM fans at the rear to enhance cooling performance. For added stability, it includes a card support bar that securely holds GPU cards in place. The RMS400LC supports ATX Power Supply Units (PSUs) and provides eight full-height PCIe slots, offering ample expansion and connectivity options for various applications.
Cooler: L15
The L15 liquid CPU cooler is designed to deliver efficient cooling performance for a wide range of processors from both Intel and AMD. It supports Intel CPU sockets including LGA1200, LGA115X, LGA1356, LGA1366, LGA2011, and LGA2066, as well as AMD sockets such as FM2+, FM2, AM2,
AM2+, AM3, AM3+, AM4, AM5, and FM1. This extensive compatibility ensures
that the L15 can be used across various systems, providing reliable cooling solutions for both current and legacy platforms.
Cooler: L45-4677
The L45-4677 liquid CPU cooler is engineered for high-performance cooling in demanding server environments, specifically supporting Intel's Sapphire Rapids and Emerald Rapids processors. It is designed to fit the LGA4677 socket, ensuring a precise and secure installation with
#8-32 screws and an installation torque of 8 in-lb. Ideal for 2U server configurations and larger setups, the L45-4677 provides effective thermal management to maintain optimal processor performance in space-constrained and high-heat applications.
Need a Custom Solution Not Offered Online? Click the Button Below.
| Search Filter | Clear All |
| Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
|
Base Configurations
Model: ATX Rackmount Computer - RMS400LC

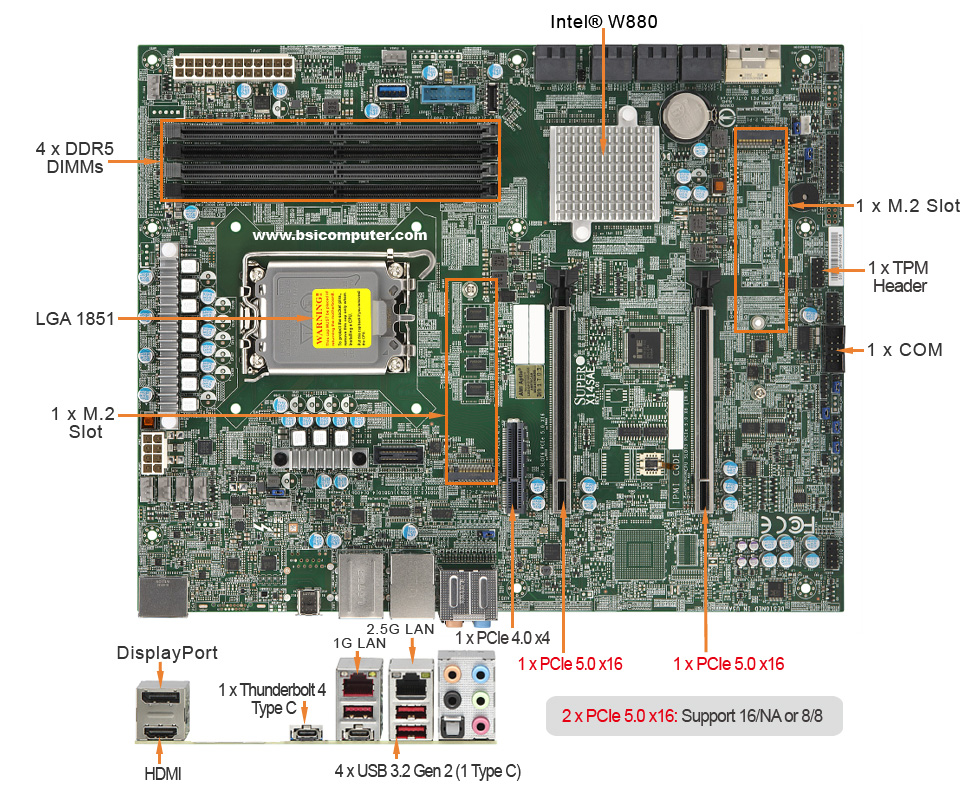

- Supermicro X14SAE ATX Motherboard
- Intel Core Ultra Processors
- Intel W880 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slot
- TPM2.0 Onboard
- 1 x Intel Thunderbolt 4 Type C
- Built-in 1 x GbE LAN, 1x 2.5GbE LAN
Base Price: |
$2,265.00 |

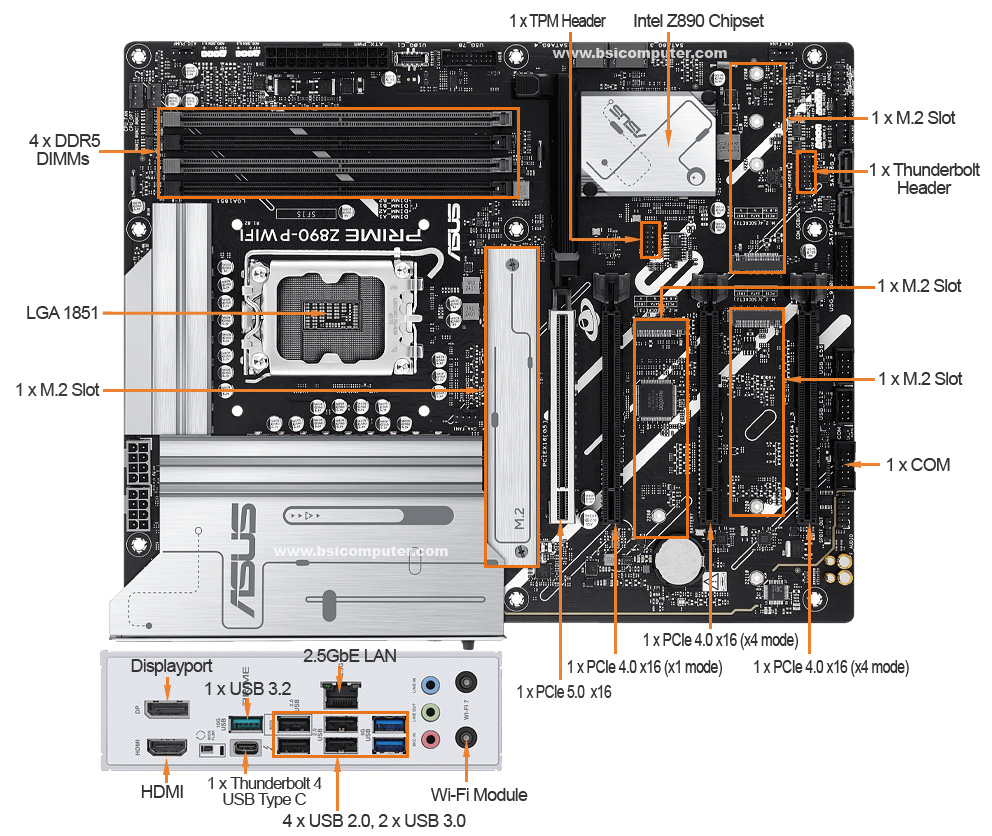

- ASUS PRIME Z890-P WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 1 x TPM Header
- 1 x Thunderbolt 4 (USB Type C)
- 1 x Thunderbolt (USB4) Header
- Built-in 2.5GbE LAN
Base Price: |
$1,845.00 |

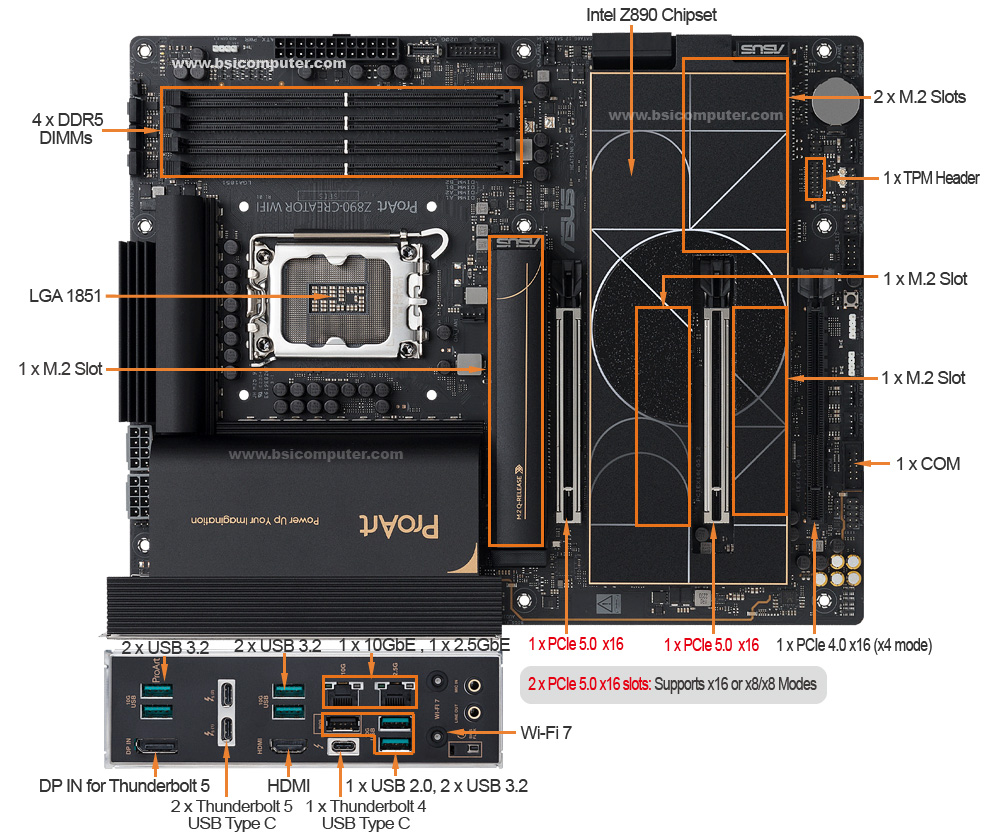

- ASUS ProArt Z890-CREATOR WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x M.2 Slots
- 1 x TPM Header
- 2 x Thunderbolt 5 (USB Type C)
- 1 x Thunderbolt 4 (USB Type C)
- Built-in 1 x 10GbE LAN, 1 x 2.5GbE LAN
Base Price: |
$2,235.00 |

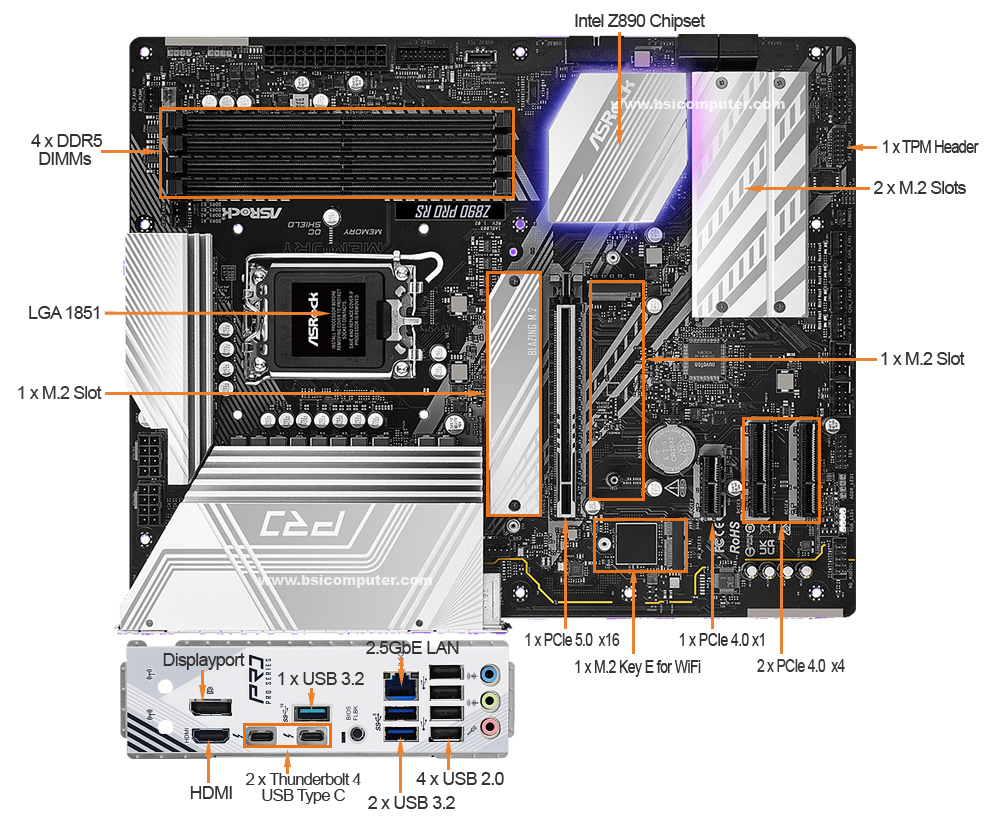

- ASROCK Z890 Pro RS ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 1 x TPM Header
- 2 x Thunderbolt 4 (USB Type C)
- Built-in 1 x 2.5GbE LAN
Base Price: |
$1,805.00 |

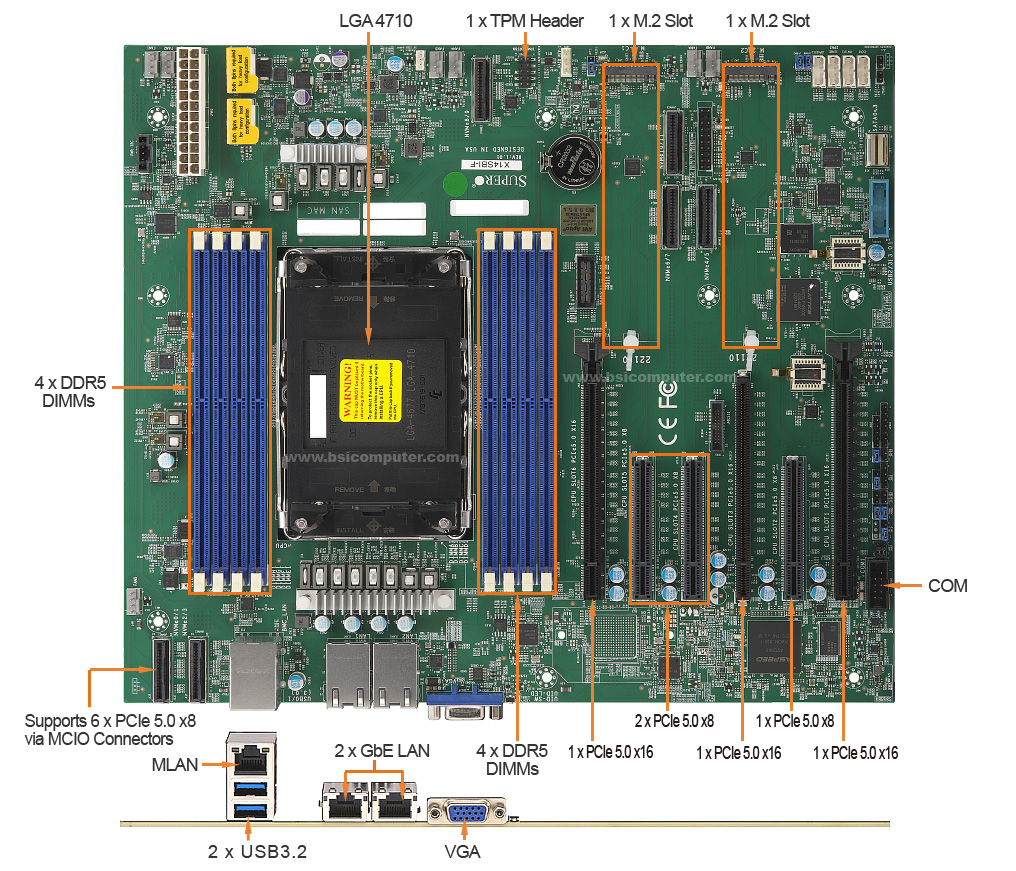

- Supermicro X14SBI-TF Motherboard
- Intel Xeon 6700E Series Processor
- DDR5 ECC Reg. Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slot
- Onboard TPM2.0
- 1 x TPM Header
- Built-in Dual GbE LAN, 1x IPMI LAN
Base Price: |
$5,295.00 |

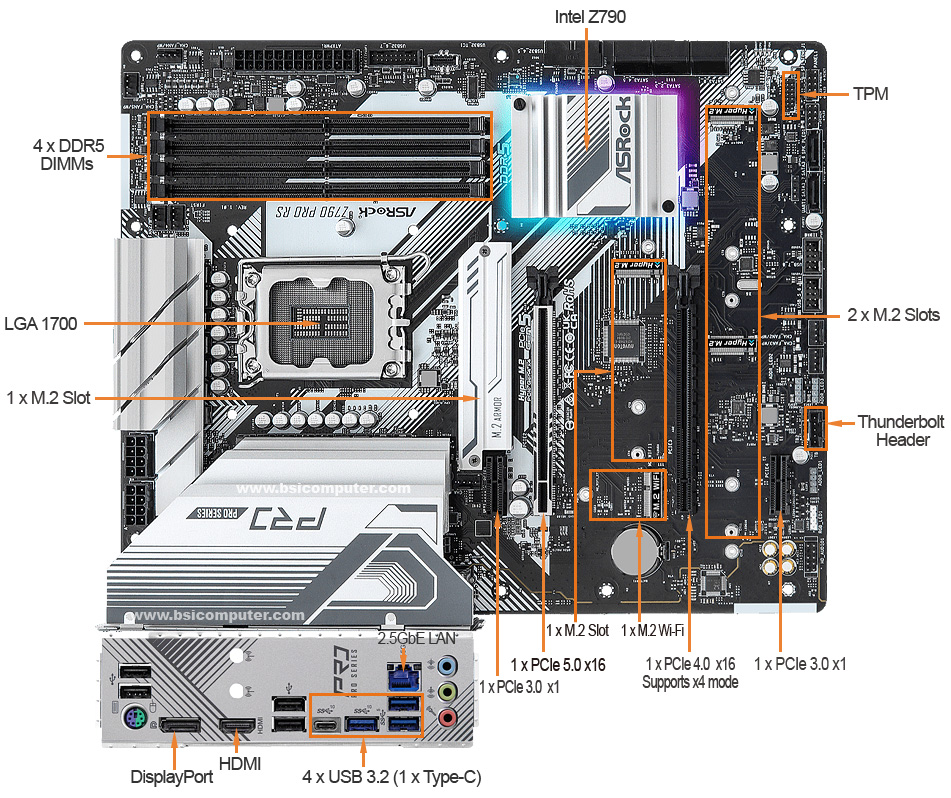

- ASRock Z790 PRO RS ATX Motherboard
- 12th/13th/14th Gen Intel Processor
- Intel Z790 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots, 1x M.2 Key E
- 4 x USB3.2 Gen 2 (1 Type C)
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in 2.5GbE LAN
- Dynatron Liquid Cooler L15
Base Price: |
$1,235.00 |

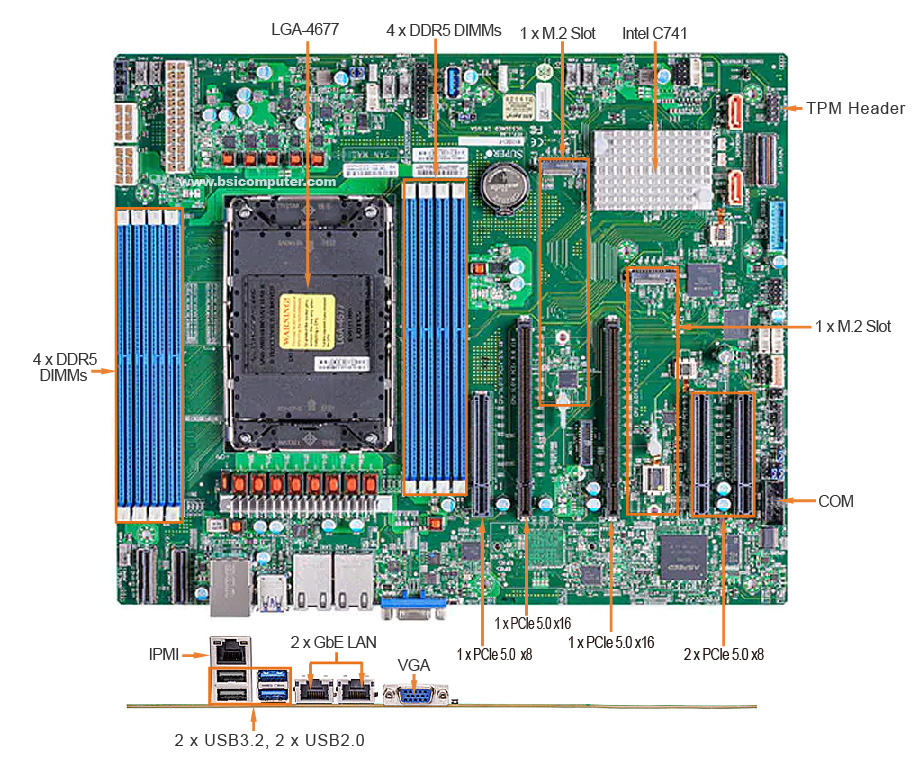

- Supermicro X13SEI-F Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13SEI-TF, Optional) - Dynatron Liquid Cooler L45-4677
Base Price: |
$2,959.00 |

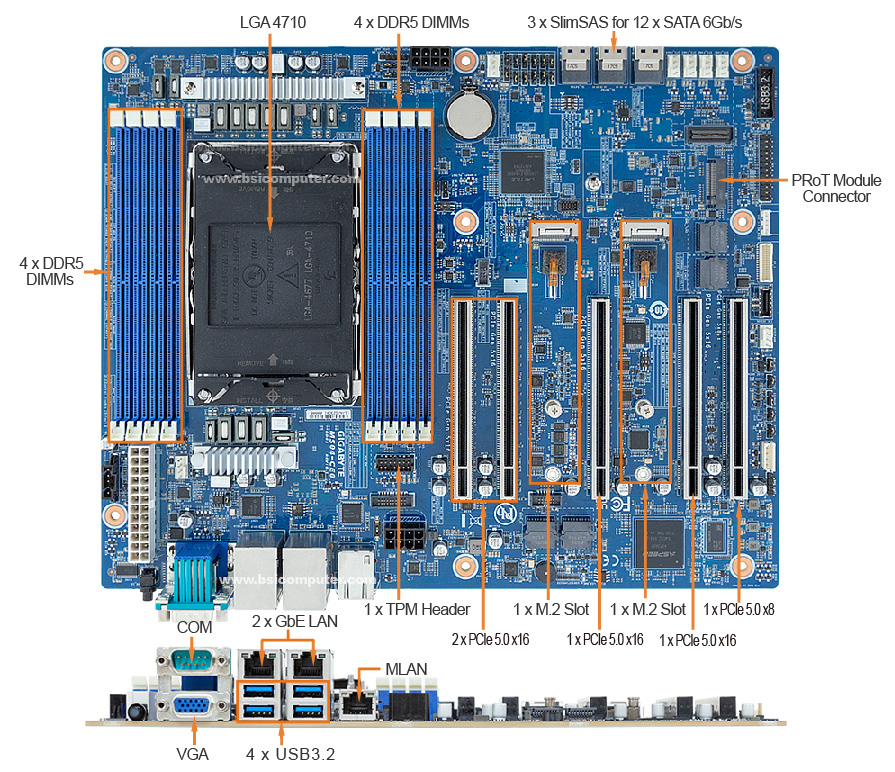

- GIGABYTE MS04-CE0 Motherboard
- Intel Xeon 6 Processors
- System on Chip
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN, 1 x MLAN
Base Price: |
$5,795.00 |

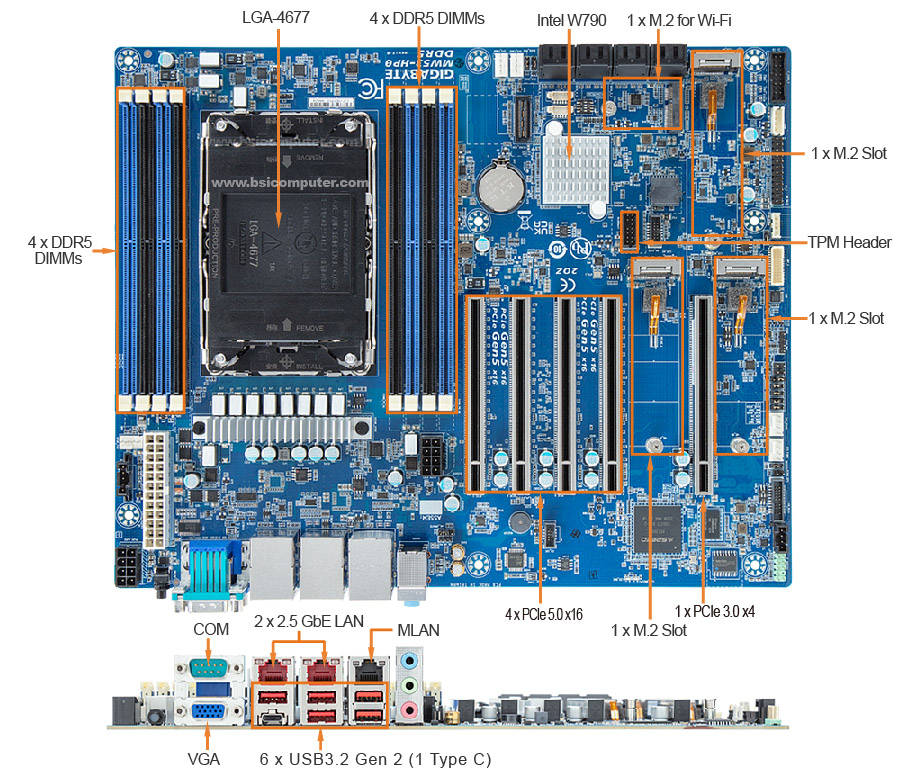

- GIGABYTE MW53-HP0 Motherboard
- Intel Xeon W-2400 Processor, Intel Xeon W-3400 Processor
- Intel W790 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots, 1 x M.2 key E for Wi-Fi
- 1 x TPM Header
- Built-in 2 x 2.5GbE LAN, 1x MLAN
- Dynatron Liquid Cooler L45-4677
Base Price: |
$2,795.00 |

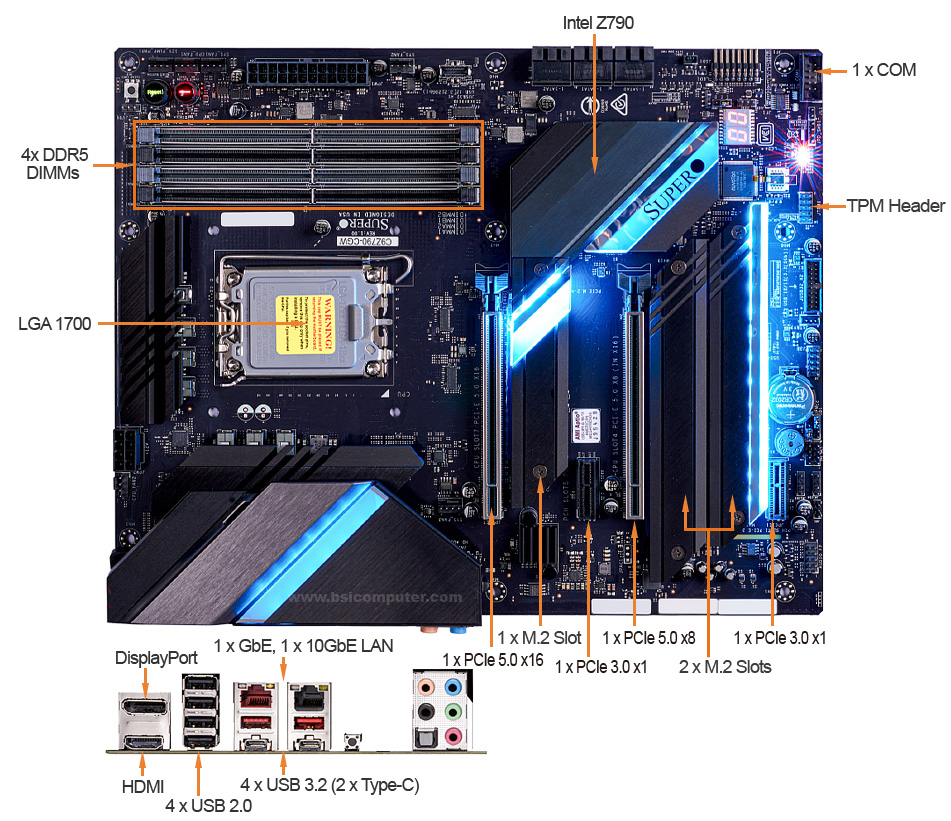

- Supermicro C9Z790-CG ATX Motherboard
- 12th/13th/14th Gen Intel Processor
- Intel Z790 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots
- 4 x USB3.2 Gen 2 (2 Type C)
- 1 x TPM Header
- Built-in 1 x GbE LAN, 1 x 10GbE LAN
- Dynatron Liquid Cooler L15
Base Price: |
$1,789.00 |

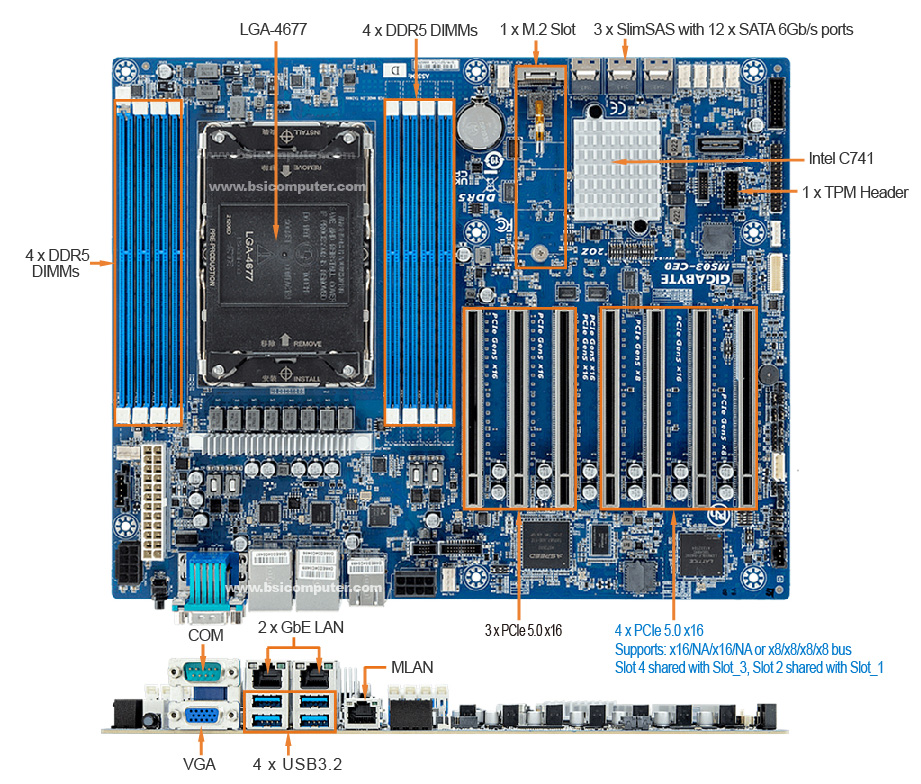

- Gigabyte MS03-CE0 Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN
- Dynatron Liquid Cooler L45-4677
Base Price: |
$3,119.00 |

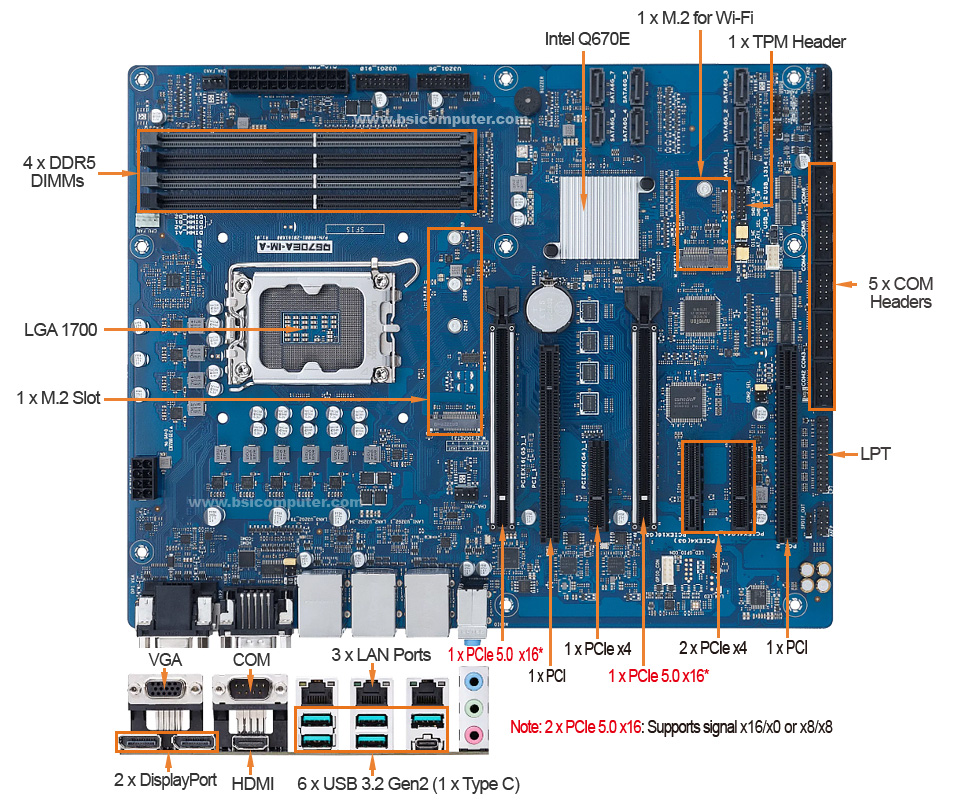

- ASUS Q670EA-IM-A ATX Motherboard
- Long-Life Lifecycle Through Q1' 2030
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x USB3.2 Type A, 1 x USB3.2 Type C
- 1 x TPM Header
- Built-in 3 x LAN Ports
- Dynatron Liquid Cooler L15
Base Price: |
$1,435.00 |
- ASRock EC262D4-4L Motherboard
- Intel Pentium Processor
- Intel Xeon E-2400 Processor
- Intel C262 Chipset
- DDR5 ECC Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slot
- 1 x TPM Header
- Built-in 4 x Gigabit LAN, 1x IPMI LAN
- Dynatron Liquid Cooler L15
Base Price: |
$1,795.00 |
Model: Industrial Rackmount Computer - RMS400LC

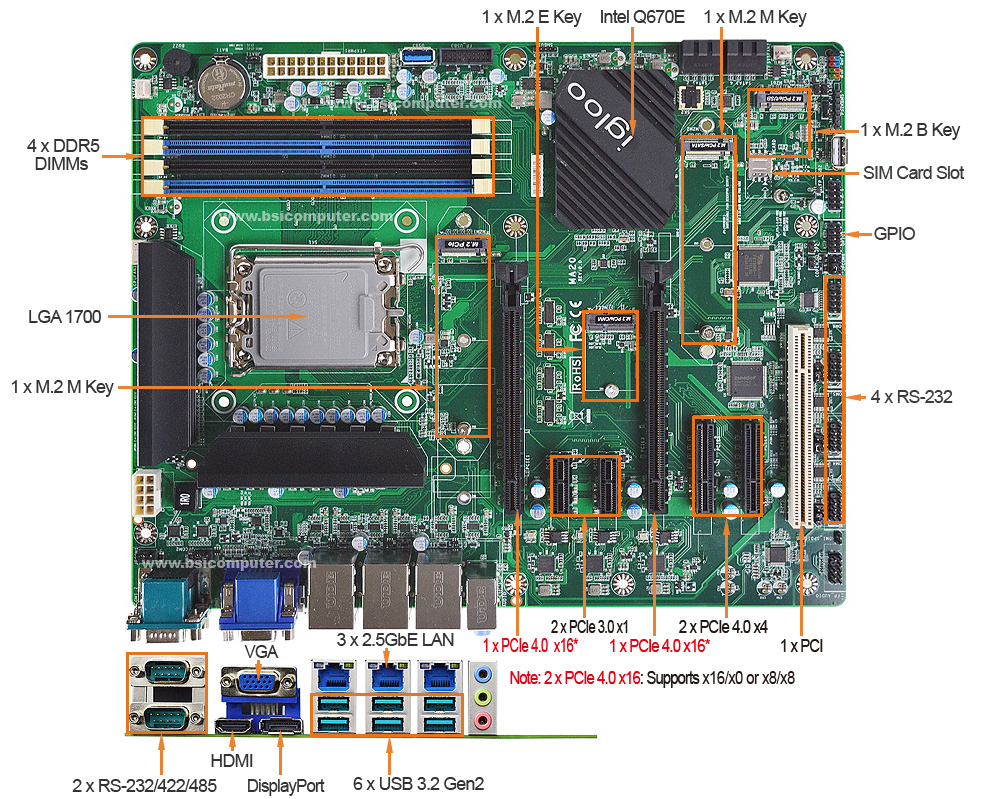

- IMB-Q670EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q1' 2037
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi , 1 x M.2 B Key for Cellular
- 4 x RS232, 2 x RS232/422/485
- 6 x USB3.2 Gen 2
- TPM 2.0 Onboard
- Built-in 3 x 2.5GbE LAN
- Dynatron Liquid Cooler L15
Base Price: |
$1,579.00 |
