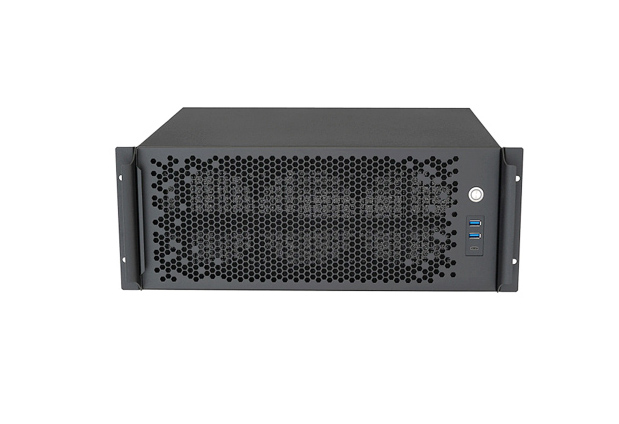

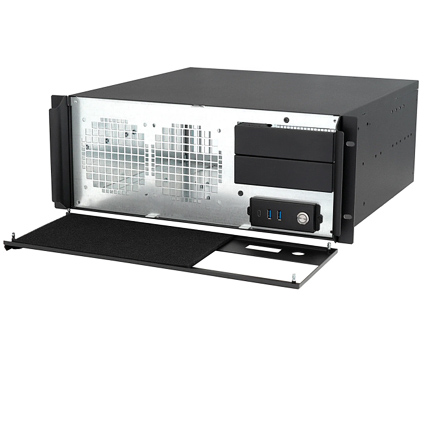

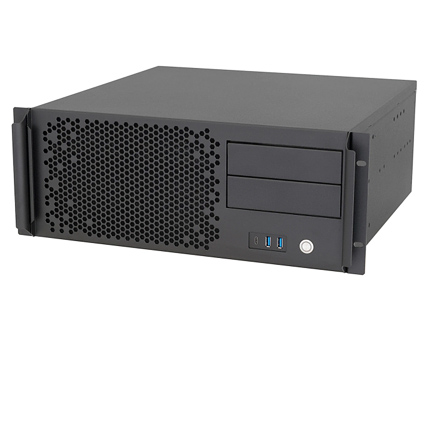

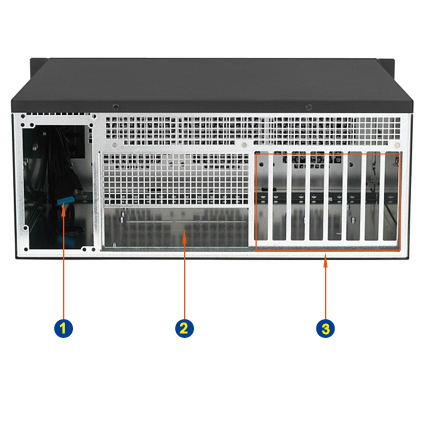

RMS4170 4U Rackmount Computer
Features:
- 4U Rack Mount Industrial Computer
- Supports SSI-CEB, SSI-EEB, EATX, ATX, Flex-ATX, and Micro-ATX Motherboards
- 2 x 5.25" External Drive Bays
- 2 x 2.5" Internal Drive Bays
- 8 x Full Height Expansion Slots

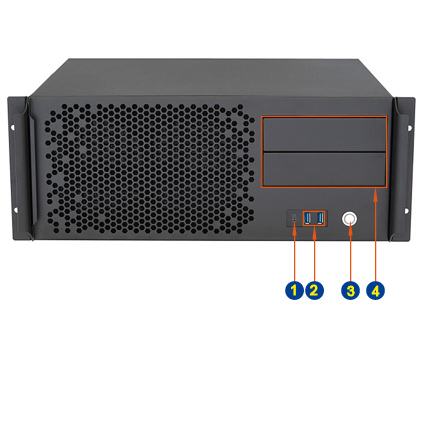

- Front Access: Power On/Off, 2 x USB 3.0, 1 x USB Type C
- CPU Liquid Coolers (Optional)
- Washable & Reusable Dust Filter
- Made in USA with US Materials
- 17" Depth Rack Mount PC
15" Depth Chassis (Optional)

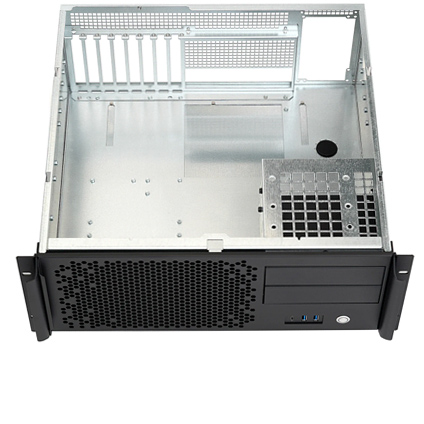

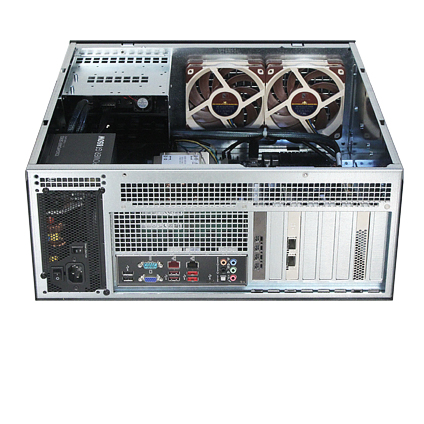

The RMS4170 is a versatile, US-made rackmount chassis designed for high-performance workstation and server builds. It features two external 5.25" bays with integrated mounting for dual internal 2.5" SSDs and supports large-format motherboards including EATX, SSI-EEB, and XL-ATX up to 13" deep. Power flexibility is built in, offering standard ATX PSU compatibility with optional redundant PSU configurations. For cooling, the chassis accommodates a 240mm AIO liquid cooler, air coolers up to 153mm tall, and up to five 120mm fans—supporting either dual or quad push/pull front intake configurations plus a rear exhaust. Ruggedly constructed in the USA from domestic materials, the RMS4170 delivers reliable performance for demanding environments.
Need a Custom Solution Not Offered Online? Click the Button Below.
| Search Filter | Clear All |
| Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
|
Base Configurations
Model: E-ATX Rackmount Computer - RMS4170

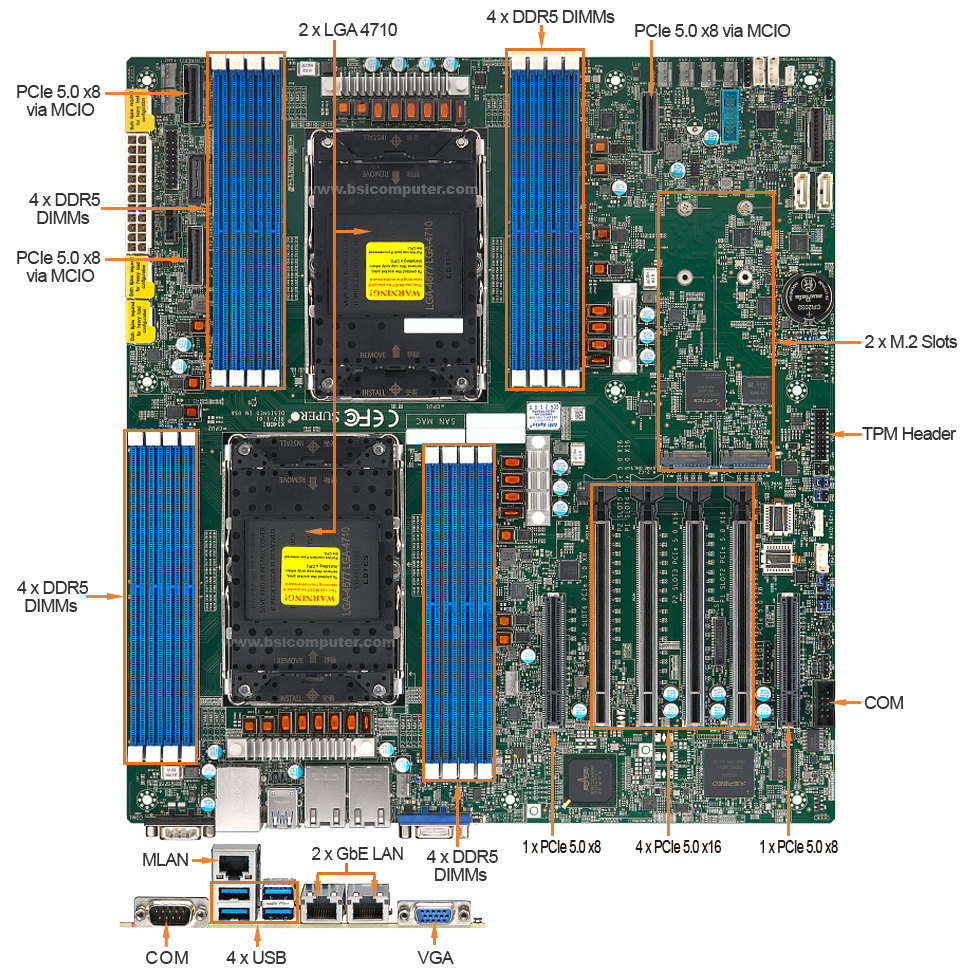

4U Rackmount Computer With Supermicro X14DBI Motherboard
- Supermicro X14DBI Motherboard
- Intel Xeon 6 Processors
- DDR5 ECC Reg. Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slot
- 1 x TPM Header
- Built-in Dual GbE LAN, 1x IPMI LAN
- Built-in Dual 10GbE LAN (X14DBI-T, Optional)
Base Price: |
$6,365.00 |

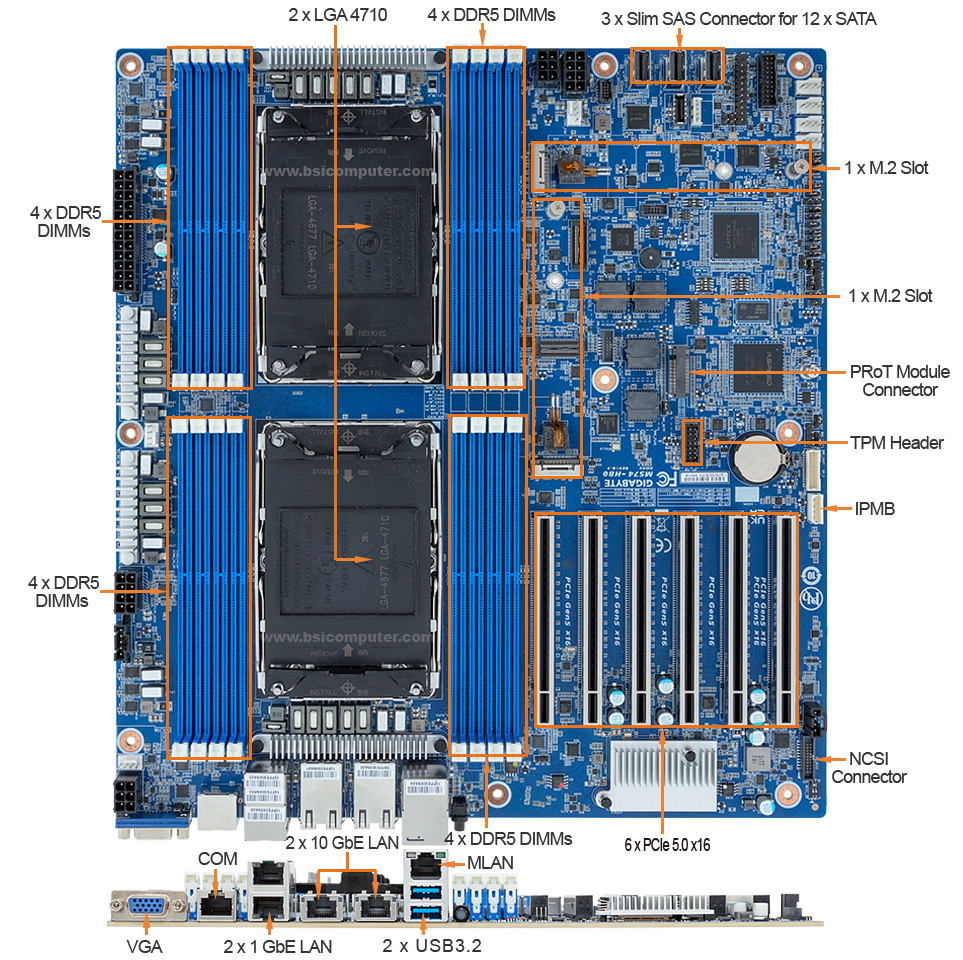

4U Rackmount Computer With GIGABYTE MS74-HB0 Motherboard
- GIGABYTE MS74-HB0 Motherboard
- Intel Xeon 6 Processors
- System on Chip
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x 10GbE LAN, 2 x Gigabit LAN, 1 x MLAN
Base Price: |
$4,685.00 |

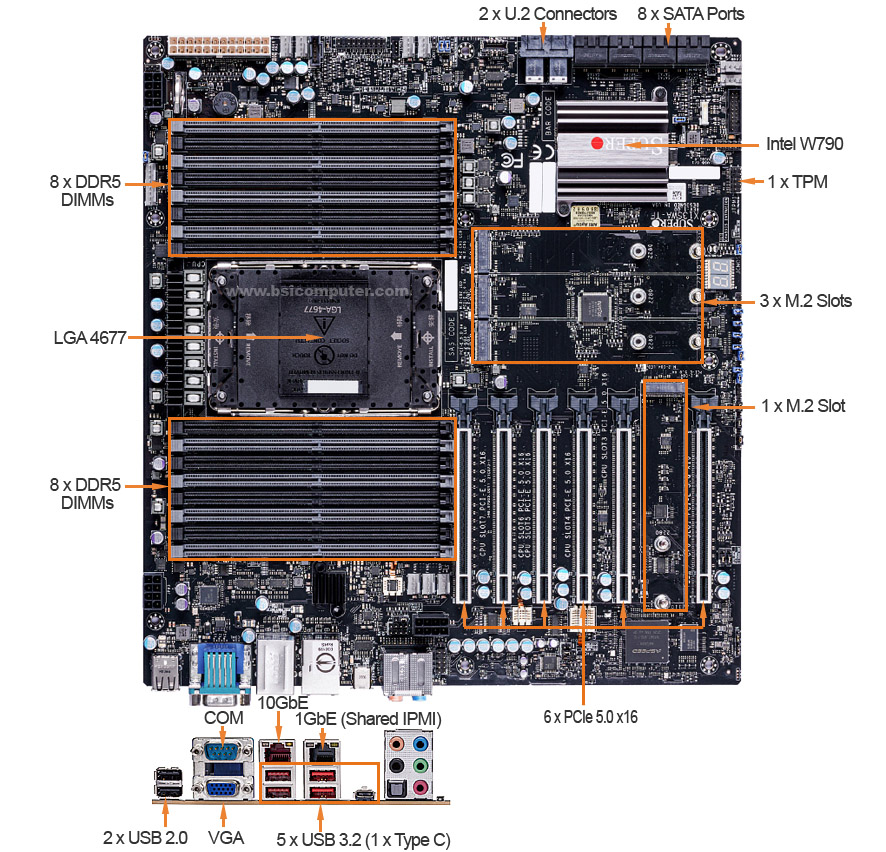

4U Rackmount Computer With Supermicro X13SWA-TF Motherboard
- Supermicro X13SWA-TF Motherboard
- Intel Xeon W-2400 Processor, Intel Xeon W-3400 Processor
- Intel W790 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 4 x PCIe 5.0 x4 M.2 Slots
- 6 x PCIe 5.0 x16
- 1 x TPM Header
- 2 x U.2 Connector
- Built-in 1x 10GbE LAN, 1x GbE LAN (Shared IPMI)
Base Price: |
$2,829.00 |

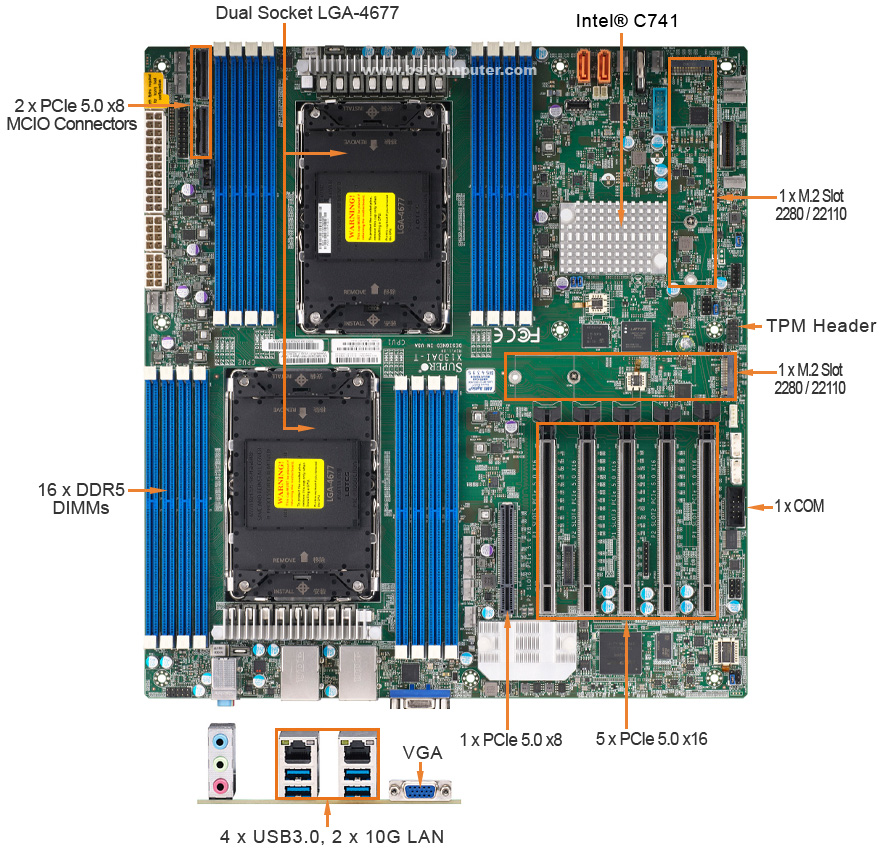

4U Rackmount Computer With Supermicro X13DAI-T Motherboard
- Supermicro X13DAI-T Motherboard
- 2x 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 2 x PCIe 5.0 x4 M.2 Slots
- 4 x NVMe Ports PCIe 5.0 x4 via 2 MCIO Connectors
- 5 x PCIe 5.0 x16, 1 x PCIe 5.0 x8
- 1 x TPM Header
- Built-in 2 x 10G LAN
Base Price: |
$4,175.00 |

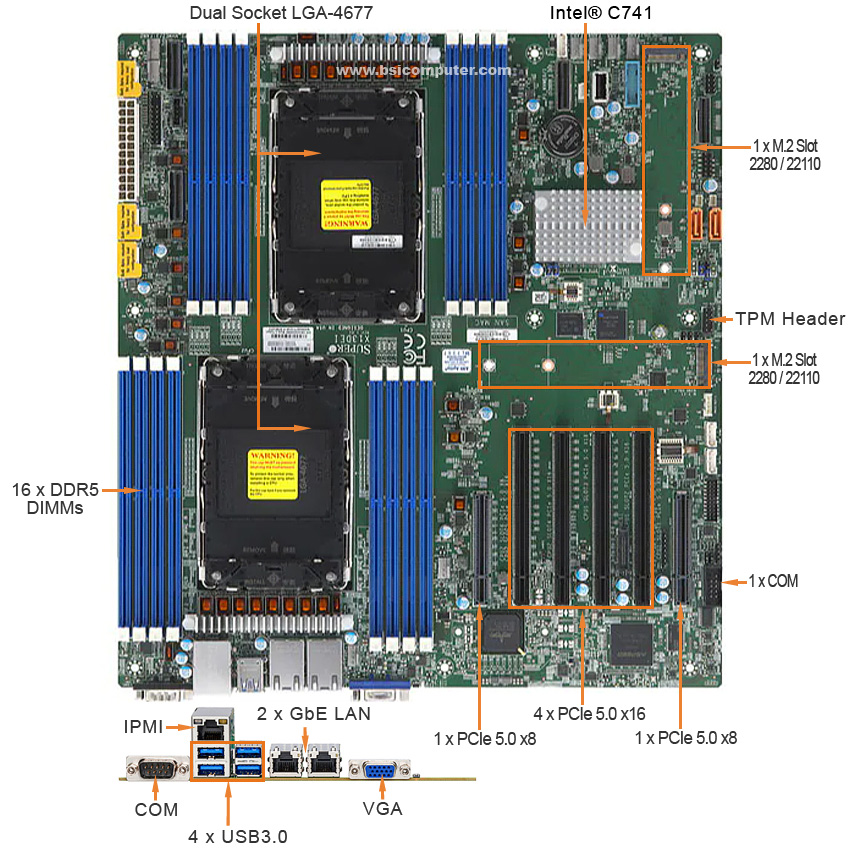

4U Rackmount Computer With Supermicro X13DEI Motherboard
- Supermicro X13DEI Motherboard
- 2x 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13DEI-T, Optional)
Base Price: |
$3,995.00 |
Model: ATX Rackmount Computer - RMS4170

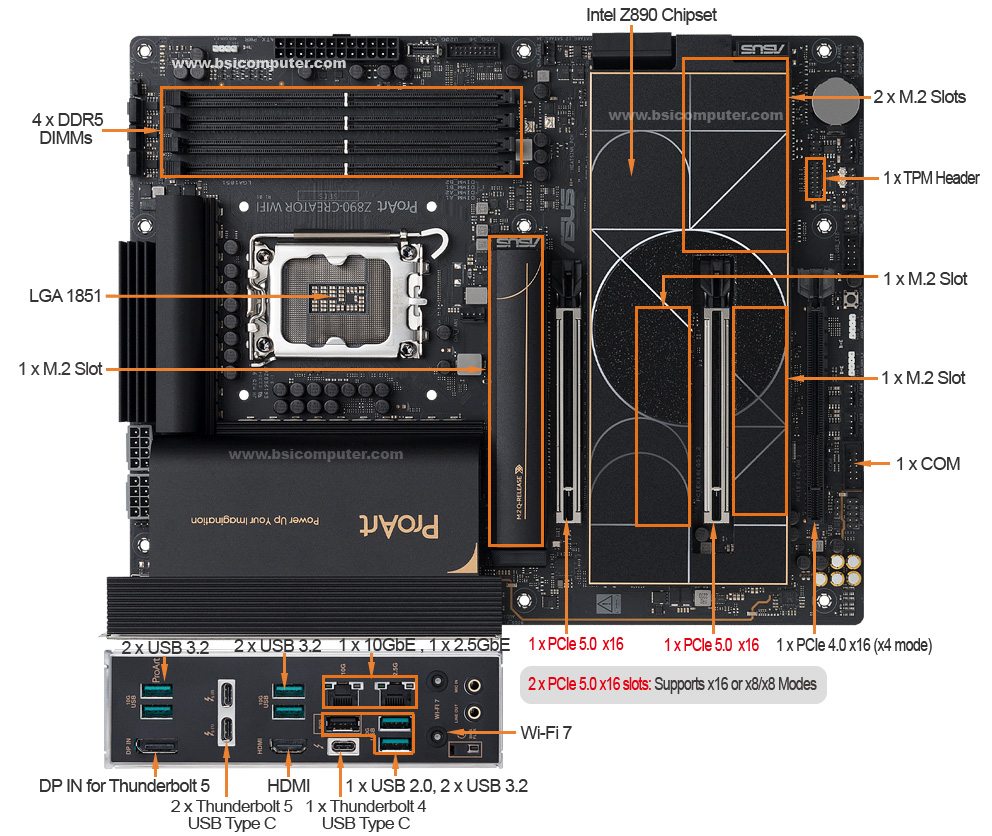

4U Rackmount Computer with ASUS ProArt Z890-CREATOR WIFI Motherboard
- ASUS ProArt Z890-CREATOR WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x M.2 Slots
- 1 x TPM Header
- 2 x Thunderbolt 5 (USB Type C)
- 1 x Thunderbolt 4 (USB Type C)
- Built-in 1 x 10GbE LAN, 1 x 2.5GbE LAN
Base Price: |
$1,809.00 |

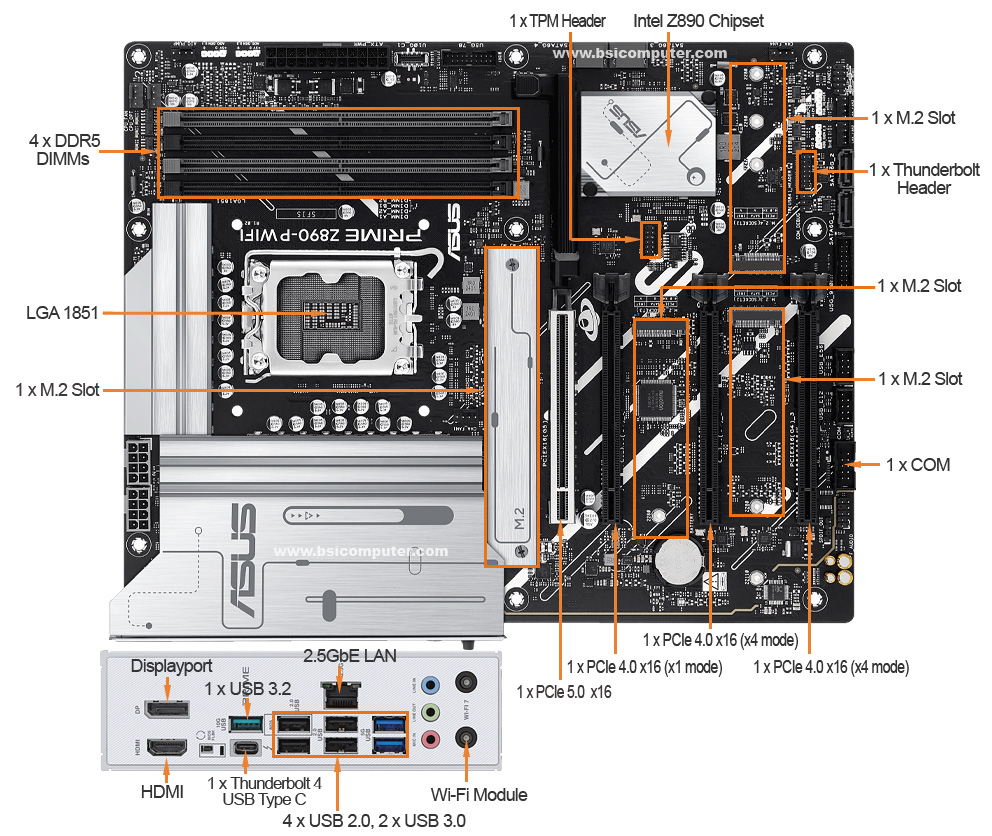

4U Rackmount Computer with ASUS PRIME Z890-P WIFI Motherboard
- ASUS PRIME Z890-P WIFI ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 1 x TPM Header
- 1 x Thunderbolt 4 (USB Type C)
- 1 x Thunderbolt (USB4) Header
- Built-in 2.5GbE LAN
Base Price: |
$1,485.00 |

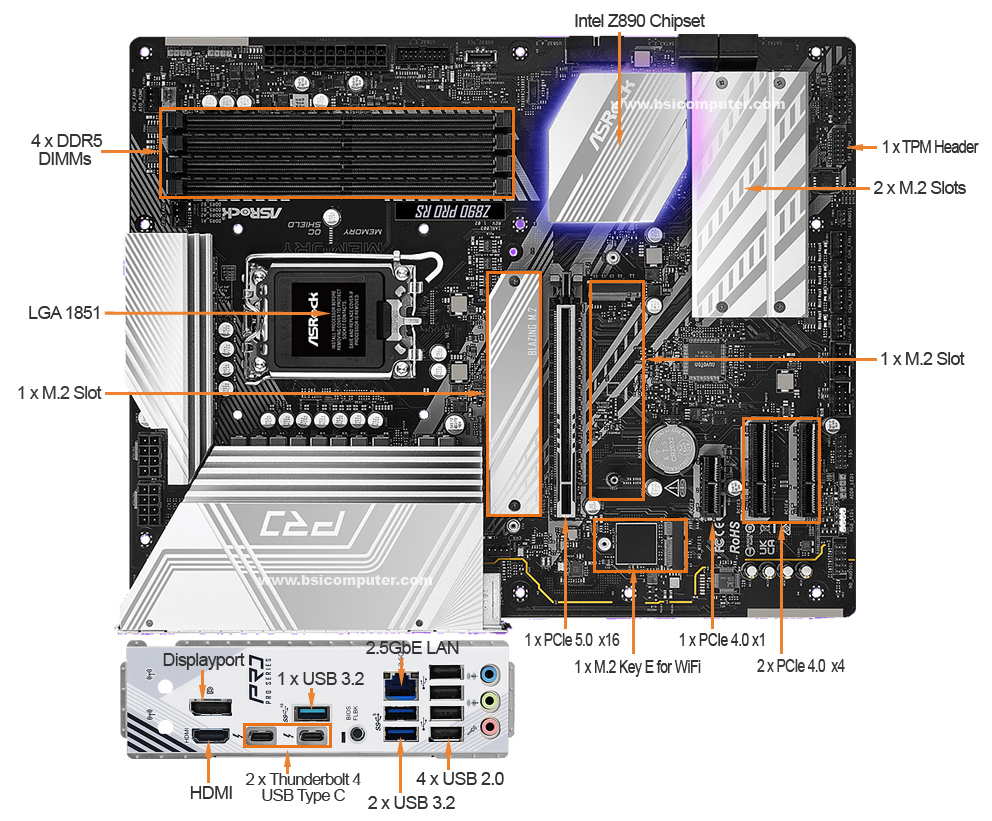

4U Rackmount Computer with ASROCK Z890 Pro RS Motherboard
- ASROCK Z890 Pro RS ATX Motherboard
- Intel Core Ultra Processors
- Intel Z890 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 1 x TPM Header
- 2 x Thunderbolt 4 (USB Type C)
- Built-in 1 x 2.5GbE LAN
Base Price: |
$1,455.00 |
4U Rackmount Computer with ASRock IMB-X1715 Motherboard
- ASRock IMB-X1715 ATX Motherboard
- Intel Core Ultra Processors
- Intel W880 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Key M Slots, 1 x M.2 Key B, 1 x M.2 Key E
- TPM 2.0 Onboard IC
- 2 x Thunderbolt 4 (USB Type C)
- Built-in 2 x GbE LAN (ASRock IMB-X1715)
- Built-in 2 x GbE LAN, 1 x 10G LAN (ASRock IMB-X1715-10G, Optional)
Base Price: |
$1,835.00 |
4U Rackmount Computer with ASRock IMB-1715 Motherboard
- ASRock IMB-1715 ATX Motherboard
- Intel Core Ultra Processors
- Intel Q870 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Key M Slots, 1 x M.2 Key B, 1 x M.2 Key E
- TPM 2.0 Onboard IC
- 2 x Thunderbolt 4 (USB Type C)
- Built-in 2 x GbE LAN
Base Price: |
$1,815.00 |
4U Rackmount Computer With Supermicro X14SAE Motherboard
- Supermicro X14SAE ATX Motherboard
- Intel Core Ultra Processors
- Intel W880 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slot
- TPM2.0 Onboard
- 1 x Intel Thunderbolt 4 Type C
- Built-in 1 x GbE LAN, 1x 2.5GbE LAN
Base Price: |
$1,845.00 |

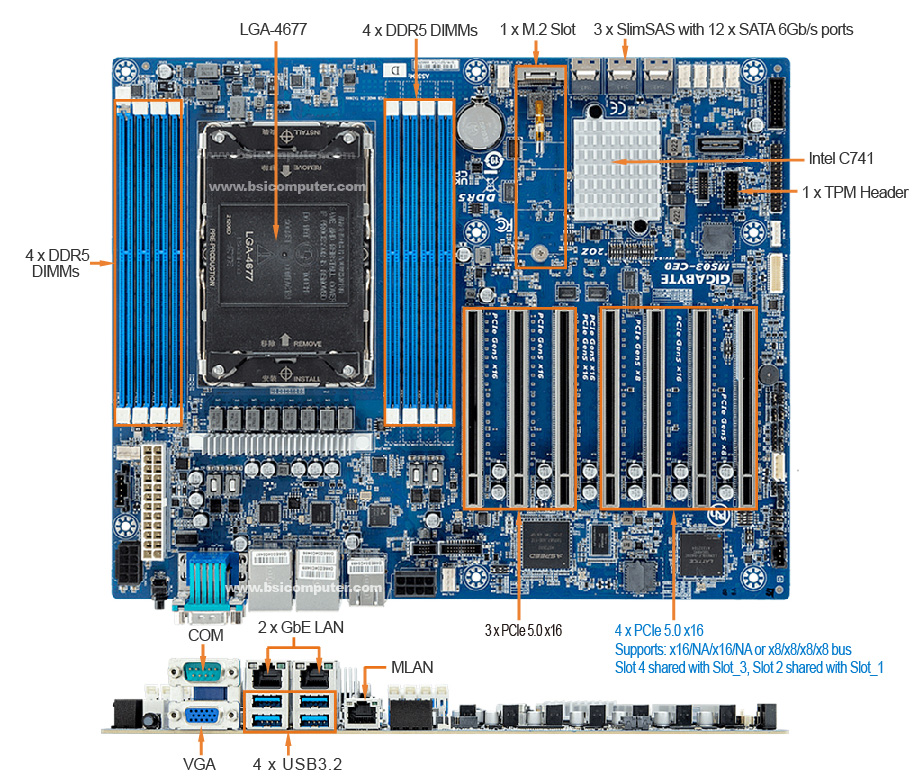

4U Rackmount Computer With Gigabyte MS03-CE0 Motherboard
- Gigabyte MS03-CE0 Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN
Base Price: |
$2,855.00 |

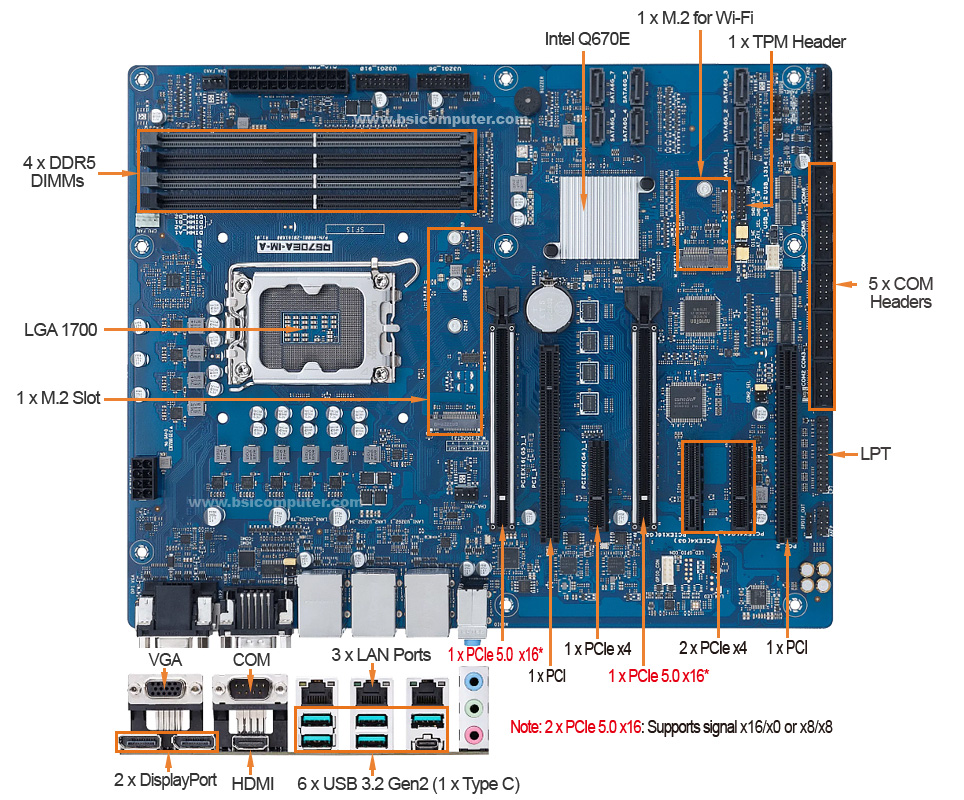

4U Rackmount Computer with ASUS Q670EA-IM-A ATX Motherboard
- ASUS Q670EA-IM-A ATX Motherboard
- Long-Life Lifecycle Through Q1' 2030
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 5 x USB3.2 Type A, 1 x USB3.2 Type C
- 1 x TPM Header
- Built-in 3 x LAN Ports
Base Price: |
$1,269.00 |

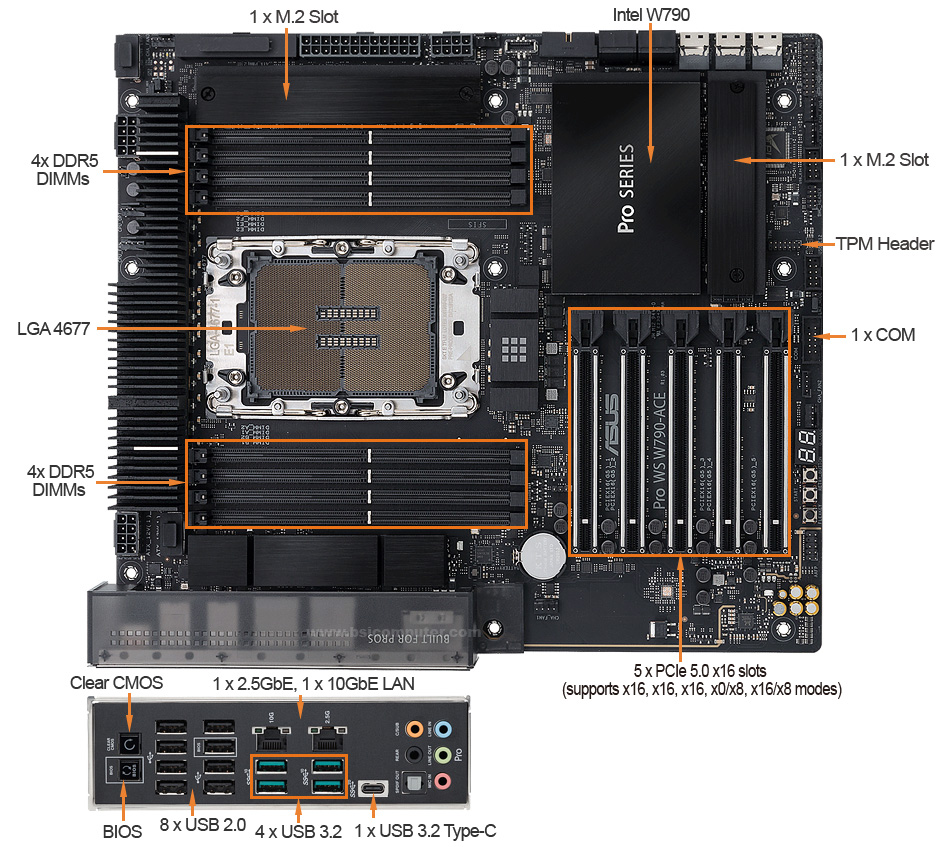

4U Rackmount Computer with ASUS Pro WS W790-ACE CEB Motherboard
- ASUS Pro WS W790-ACE CEB Motherboard
- Intel Xeon W-3400 & W-2400 Processors
- Intel W790 Chipset
- DDR5 ECC Reg. Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 1 x TPM Header
- Built-in 1 x 2.5GbE LAN, 1 x 10GbE LAN
Base Price: |
$2,965.00 |

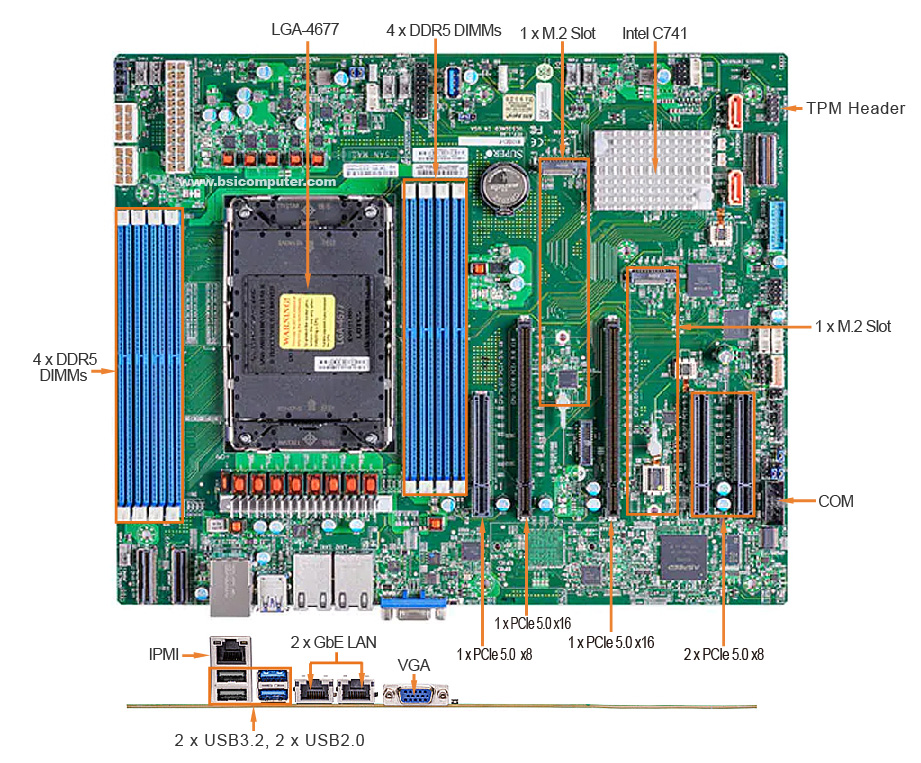

4U Rackmount Computer With Supermicro X13SEI-F Motherboard
- Supermicro X13SEI-F Motherboard
- 4th/5th Gen Intel Xeon Scalable processors
- Intel C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13SEI-TF, Optional)
Base Price: |
$2,665.00 |
Model: Industrial Rackmount Computer - RMS4170

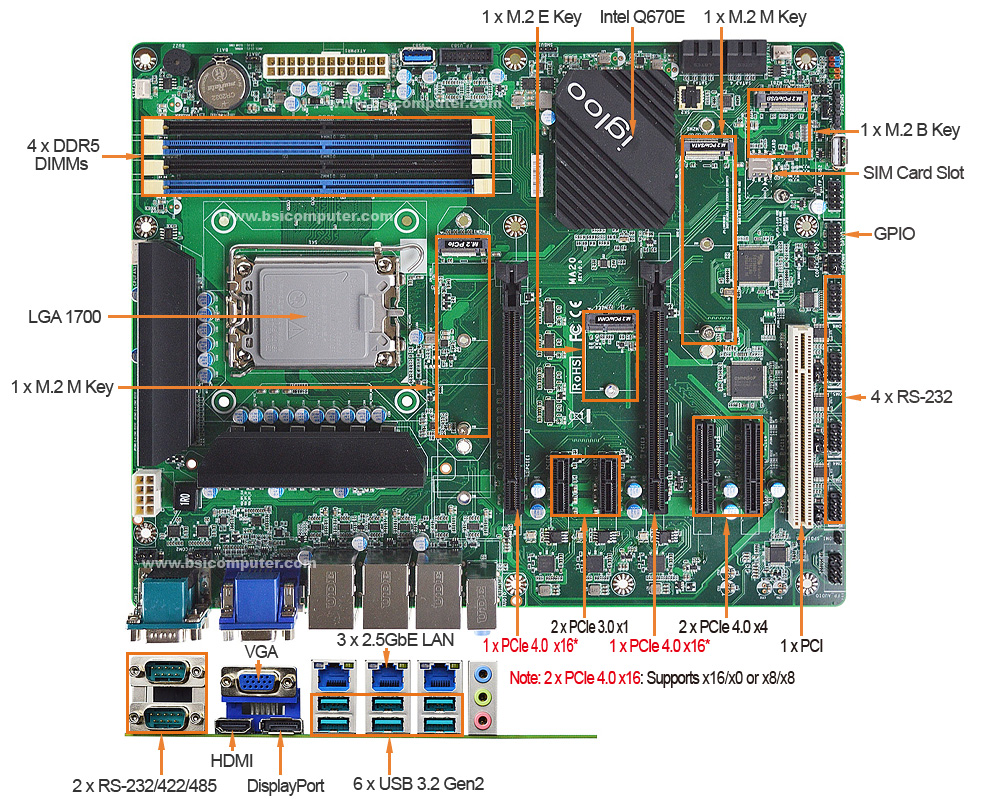

4U Rackmount Computer with IMB-Q670EJT2 Motherboard
- IMB-Q670EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q1' 2037
- 12th/13th/14th Gen Intel Processor
- Intel Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi , 1 x M.2 B Key for Cellular
- 4 x RS232, 2 x RS232/422/485
- 6 x USB3.2 Gen 2
- TPM 2.0 Onboard
- Built-in 3 x 2.5GbE LAN
Base Price: |
$1,389.00 |
Model:
4U Rackmount Computer with MSI MS-CF20 Motherboard
- MSI MS-CF20 ATX Motherboard
- Intel Core Ultra Processors
- Intel W880 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Key M Slots, 1 x M.2 Key E
- TPM 2.0 Onboard
- Built-in 2 x 2.5GbE LAN
Base Price: |
$1,685.00 |
