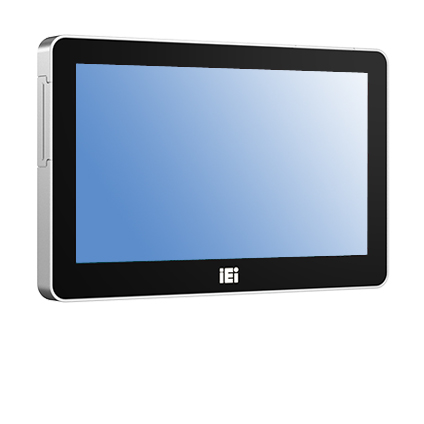

AFL4-W07-RK3566 Fanless Panel PC with Rockchip RK3566 Processor

Features:

  • 7" 1024 x 600 (16:9) 450nits w/ Multi-point Projected Capacitive Touch Screen
  • New Narrow Bezel Design
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation
  • Rockchip RK3566(Quad-core Cortex-A55 up to 1.8Ghz)
  • 4GB LPDDR4x Memory
  • 32GB eMMC NAND Flash
  • Support WiFi 5/ 6 and Bluetooth5.0 (Optional)
  • Body Material: Aluminum Die Casting
  • IP64 Compliant Front Panel

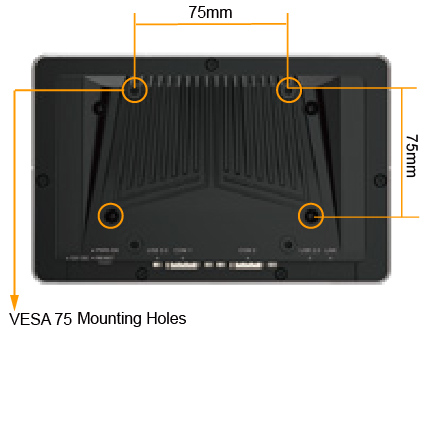

  • Mounting Supports Panel, Wall, Stand, Arm, VESA 75mm x 75mm (Optional)

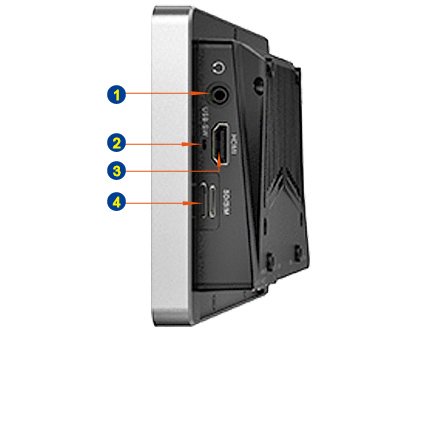

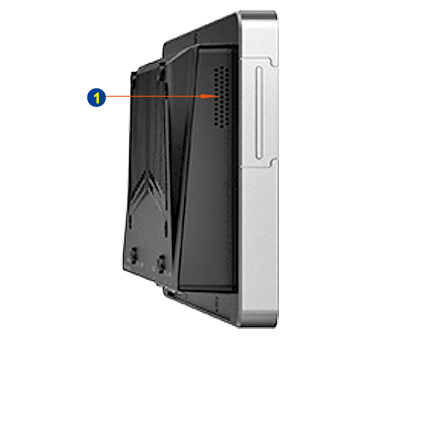

The AFL4-W07-RK3566 is a compact 7-inch fanless panel PC featuring a 1024×600 (16:9) multi-touch display with anti-glare/anti-UV coating, glove support, and 7H surface hardness. Powered by a Rockchip RK3566 quad-core Cortex-A55 processor (up to 1.8GHz), it includes 4GB/8GB LPDDR4/4X RAM and 16/32GB eMMC storage, ensuring smooth performance for industrial and embedded applications. Connectivity options include 1GbE LAN, optional Wi-Fi 5/6 & BT5.0, USB 3.2 Gen1, RS-232/422/485, and HDMI (4K@60Hz). Designed for durability, it operates in 0°C to 50°C with an IP54-rated front panel, resisting dust and water splashes. Additional features include a 1W internal speaker, 3.5mm audio jack, VESA 75 mounting, and support for Android 12 and Debian 10. Its fanless, rugged design makes it ideal for kiosks, automation, and IoT deployments.

Base Configurations

AFL4-W07-RK3566 7" Fanless Touch Panel PC


  • 7" 1024 x 600 450nits Projected Capacitive Touch Screen
  • Rockchip RK3566 (Quad-core Cortex-A55 up to 1.8Ghz)
  • 4GB LPDDR4x Memory
  • 32GB eMMC NAND Flash

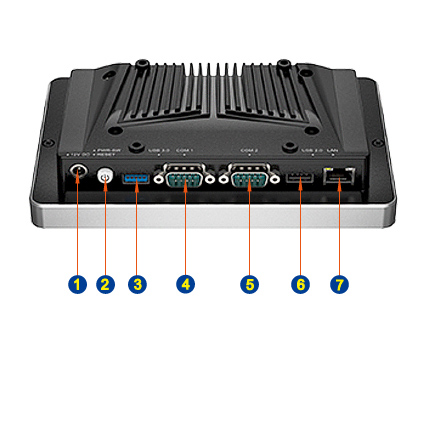

  • 2 x RS-232/422/485 (DB9)
  • 1 x GbE LAN
  • 1 x USB3.0, 1 x USB2.0
  • HDMI 2.0
  • 1 x 3042/52 B-key, 1 x Micro SD Slot, 1 x NANO SIM Card Slot
  • 802.11 a/b/g/n/ac/ax Wi-Fi + BT 5.3, with Internal WIFI 6 Antenna (Optional)
  • IP 64 Compliant Front Panel
  • Power Adapter

Configured:

$405.00

Customize
