Features:

• 10.1" 1280 x 800 (16:10) 420nits w/ Multi-point Projected Capacitive Touch Screen
• New Narrow Bezel Design
• Anti-glare and Anti-UV PCAP
• Support Gloved and Wet Hand Operation
• Rockchip RK3568 (Quad-core Cortex-A55 up to 2.0Ghz)
• 4GB LPDDR4x Memory
• 32GB eMMC NAND Flash
• Support WiFi 5/ 6 and Bluetooth5.0 (Optional)
• Body Material: Aluminum Die Casting +SECC
• IP64 Compliant Front Panel
• Mounting Supports Panel, Wall, Stand, Arm, VESA 75mm x 75mm (Optional)

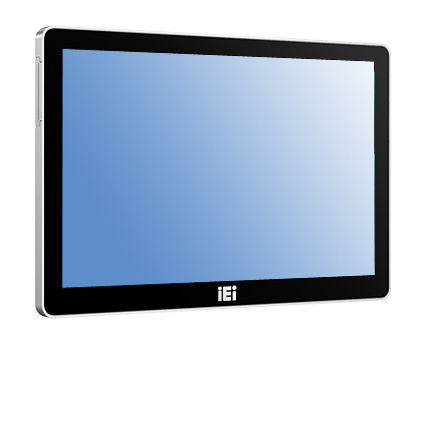

The AFL4-W10-RK3568 is a fanless panel PC featuring a 10.1-inch (1280×800) touchscreen with anti-glare/anti-UV coating and projected capacitive (PCAP) touch support. Powered by a Rockchip RK3568 quad-core Cortex-A55 processor (up to 2.0GHz), it comes with 4GB/8GB LPDDR4/4X RAM, 32GB eMMC storage, and a Micro SD slot for expandability. Connectivity includes dual 1GbE LAN, Wi-Fi 5/6 & BT5.0 (optional), 2x USB3.0, 2x USB2.0, RS-232/485, and HDMI 2.0. Designed for industrial use, it operates in -10°C to 50°C with an IP64-rated front panel, making it resistant to dust and water splashes. Additional features include a 1.3W internal speaker, VESA 75 mounting, and support for Debian OS. Its compact, fanless design ensures silent, reliable performance in automation, kiosk, and IoT applications.
